Obesity and colorectal cancer risk: A systematic review and meta-analysis

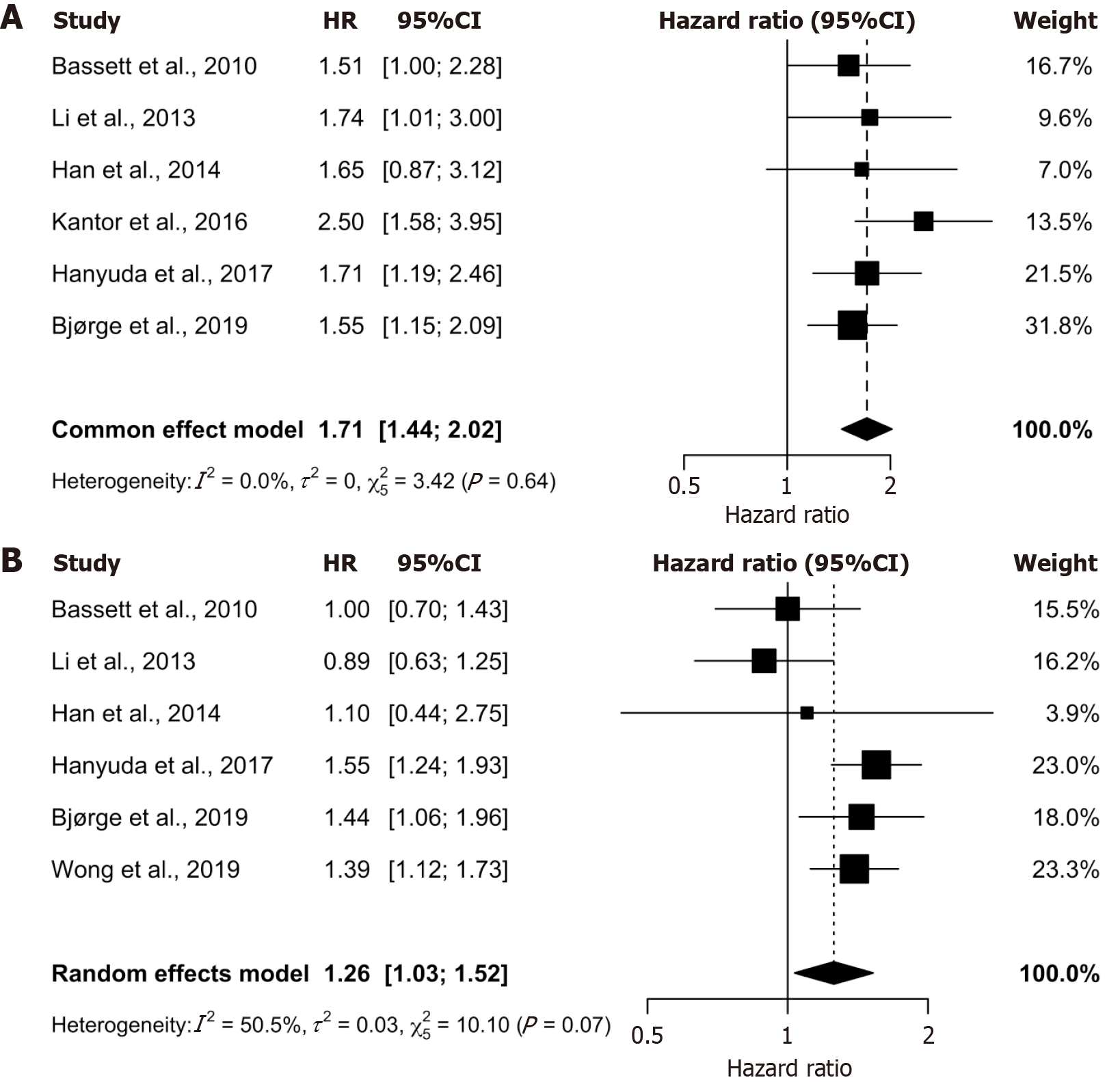

Figure 1 Forest plots of the association between obesity and colorectal cancer risk stratified by sex. A: Pooled analysis for men shows a strong, statistically significant positive association (HR 1.71, 95%CI: 1.44-2.02) with no observed heterogeneity (I² = 0.0%); B: Pooled analysis for women indicates a significant but attenuated positive association (HR 1.26, 95%CI: 1.03-1.52) with moderate heterogeneity (I² = 50.5%).

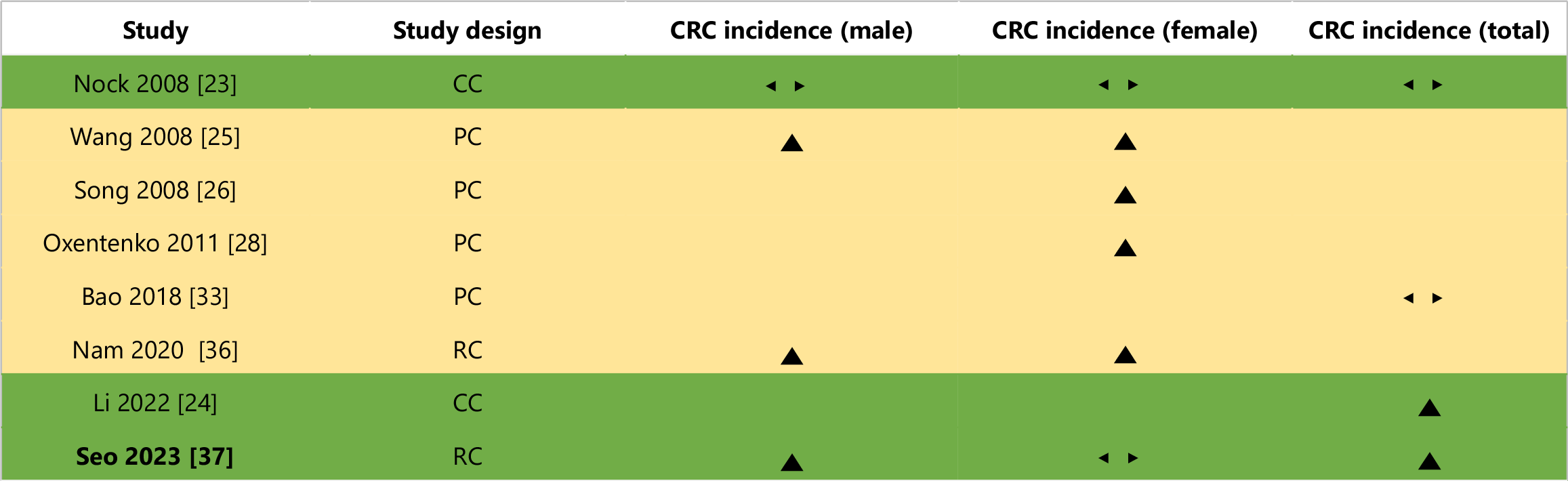

Figure 2 Effect direction plot for studies not included in meta-analyses. Effect direction: ▲ = Positive health impact, ▼ = Negative health impact, ◄► = No change/mixed effects/conflicting findings. Sample size: Final sample size (individuals) in intervention group large arrow ▲ > 300; medium arrow ▲ 50-300; small arrow ▲ < 50. Study quality: Denoted by row colour: Green = Low risk of bias; amber = Some concerns; red = High risk of bias. CC: Case-control; PC: Prospective cohort; RC: Retrospective cohort.

Figure 3 Summary diagram of major molecular mechanisms linking obesity and obesity-linked behaviours with colorectal cancer.

Figure 4 Diagram showing biological mechanisms of obesity-induced inflammatory dysregulation and colorectal cancer development. TNF-α: Tumour necrosis factor alpha; IL: Interleukin.

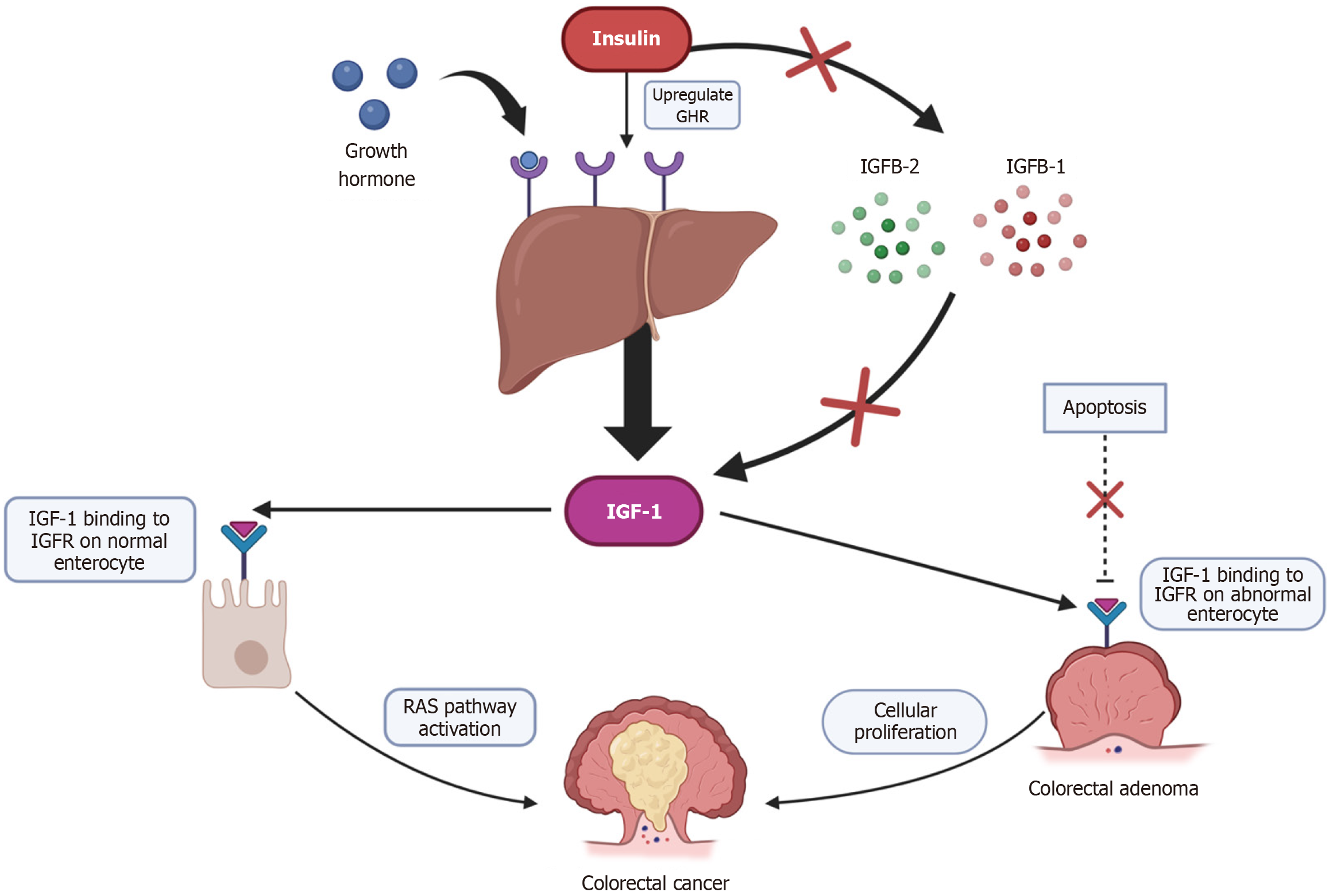

Figure 5 Diagram showing biological mechanisms of proposed insulin and insulin-like growth factor 1 induced carcinogenesis. IGF-1: Insulin-like growth factor 1.
