Dynamic esophageal manometry reveals pseudoachalasia secondary to metastatic breast cancer: A case report

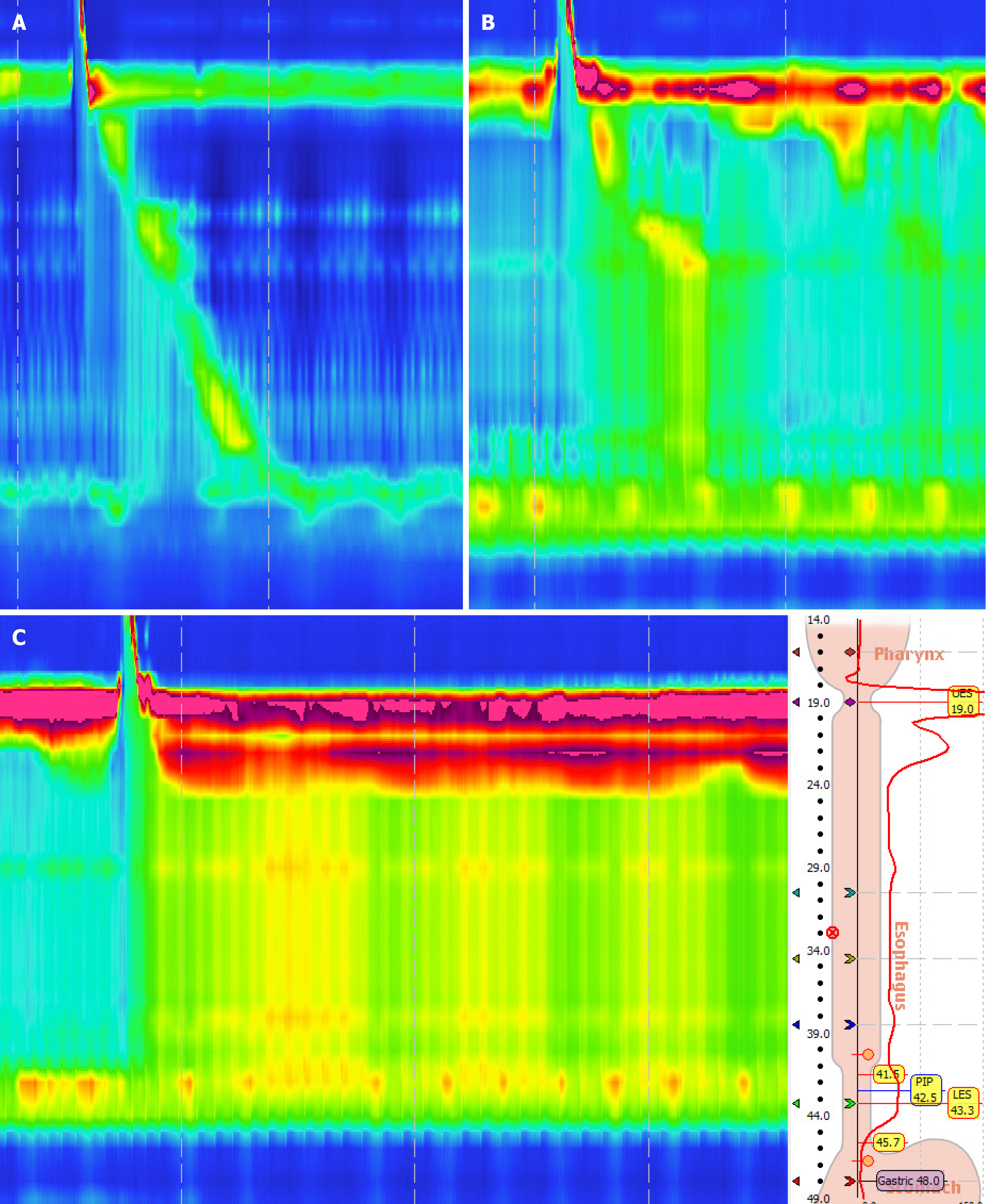

Figure 1 High-resolution manometry findings. A: High-resolution manometry (HRM) on September 8, 2016 demonstrated peristaltic waves with a distal contractile integral of less than 450 mmHg.s.cm. A mild increase in intra-bolus pressure was observed after swallowing, with a median 4-seconds integrated relaxation pressure (IRP) of 12.8 mmHg and normal esophagogastric junction (EGJ) pressure; B and C: HRM on January 6, 2017 shows the distal latency of 1/10 waves is less than 4.5 seconds, 9/10 waves show pan-esophageal pressurization. The minimal pressure of the low esophageal sphincter during respiration is 38.2 mmHg, 4 seconds IRP median is 46.9 mmHg, with a significant increase in EGJ pressure.

Figure 2 Gastroscopy view of the patient. A and B: In January 2017, gastroscopy revealed a smooth esophagus mucosa and a severe cardiac stenosis, the gastroscope was unable to pass through.

Figure 3 Thoracoabdominal computed tomography imaging. A and B: In January 2017, the barium meal revealed the classic “beak sign"; C and D: In January 2017, computed tomography showed space-occupying lesions at the cardia and the fundus of the stomach, with metastatic lymph nodes in the surrounding retroperitoneal area.

Figure 4 Pathological findings. A: Hematoxylin and eosin (HE) staining at 200 × magnification revealed invasive lobular carcinoma of the breast, with visible lymphovascular tumor emboli and neural invasion; B: Immunohistochemical staining for HER2 in lymph nodes. Out of 23 Lymph nodes examined, cancer was present in 22, HER2(+); C: Cardia puncture tissue pathological HE staining at 200 × magnification: In the fibrous tissue, tumor is observed, which has the same morphological characteristics as the tumor found in the breast tissue section that was resected and examined in January 2016; D: Immunohistochemical staining for GATA3, confirming the metastatic origin of the tumor from the breast. The findings are consistent with the metastatic spread of lobular carcinoma of the breast.
