Bidirectional regulation of the gut microbiome-immune axis in the immune microenvironment of colorectal cancer and targeted interventions

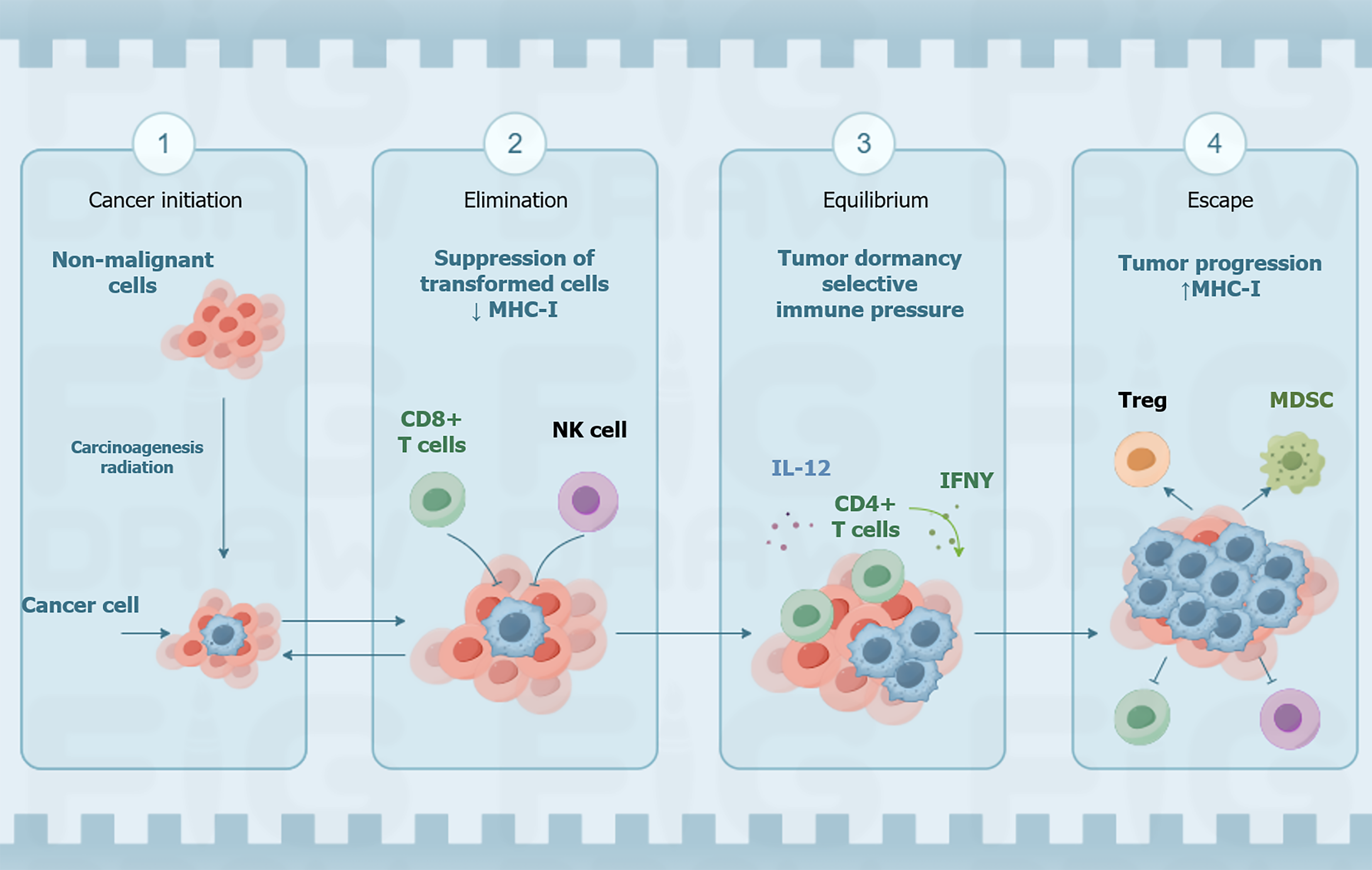

Figure 1 Mechanisms of immune evasion in colorectal cancer. The immune evasion of colorectal cancer occurs in four stages: (1) Initiation: Normal cells undergo malignant transformation into cancer cells under the influence of carcinogenic factors; (2) Elimination: Immune cells, such as CD8+ T cells and natural killer cells, recognize and attack transformed cells with reduced major histocompatibility complex class I (MHC-I) expression; (3) Equilibrium: Tumor cells enter a dormant state, during which the immune system-mediated by CD4+ T cells, interleukin-12, and interferon-gamma-exerts selective pressure to control tumor growth; and (4) Escape: Cancer cells further downregulate MHC-I expression and exploit immunosuppressive cells such as regulatory T cells and myeloid-derived suppressor cells to promote tumor progression and achieve immune evasion. MHC-I: Major histocompatibility complex class I; IL-12: Interleukin-12; NK: Natural killer cells; Treg: Regulatory T cell; MDSCs: Myeloid-derived suppressor cells.

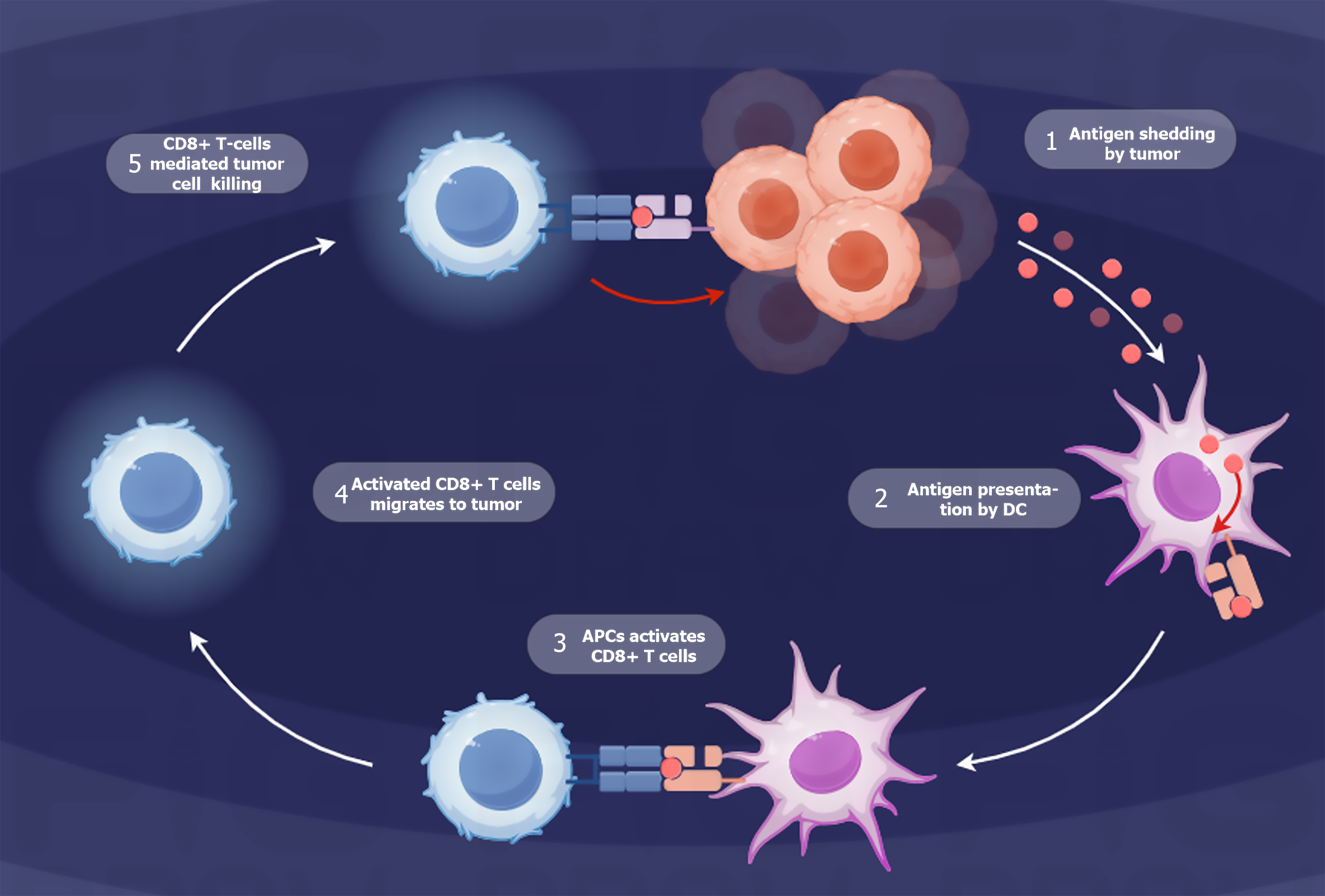

Figure 2 Mechanism of antigen presentation-induced cluster of differentiation 8+ T cell-specific immune response. The mechanism involves five steps: (1) Tumor antigen release: Tumor cells shed or release antigens; (2) Antigen presentation by dendritic cells (DC): DC, a type of antigen-presenting cells (APCs), capture and process these tumor antigens; (3) Activation of cluster of differentiation (CD)8+ T cells by APCs: The APCs then activate CD8+ T cells through antigen presentation; (4) Migration of activated CD8+ T cells to the tumor site: Activated CD8+ T cells migrate toward the tumor location; and (5) CD8+ T cell-mediated tumor cell killing: Finally, CD8+ T cells exert cytotoxic effects and eliminate tumor cells. APCs: Antigen-presenting cells; DC: Dendritic cells; CD: Cluster of differentiation.
