Association of peripheral blood-derived mesenchymal stem cells exosomal circular RNAs with diagnosis and inflammatory response in acute mesenteric ischemia

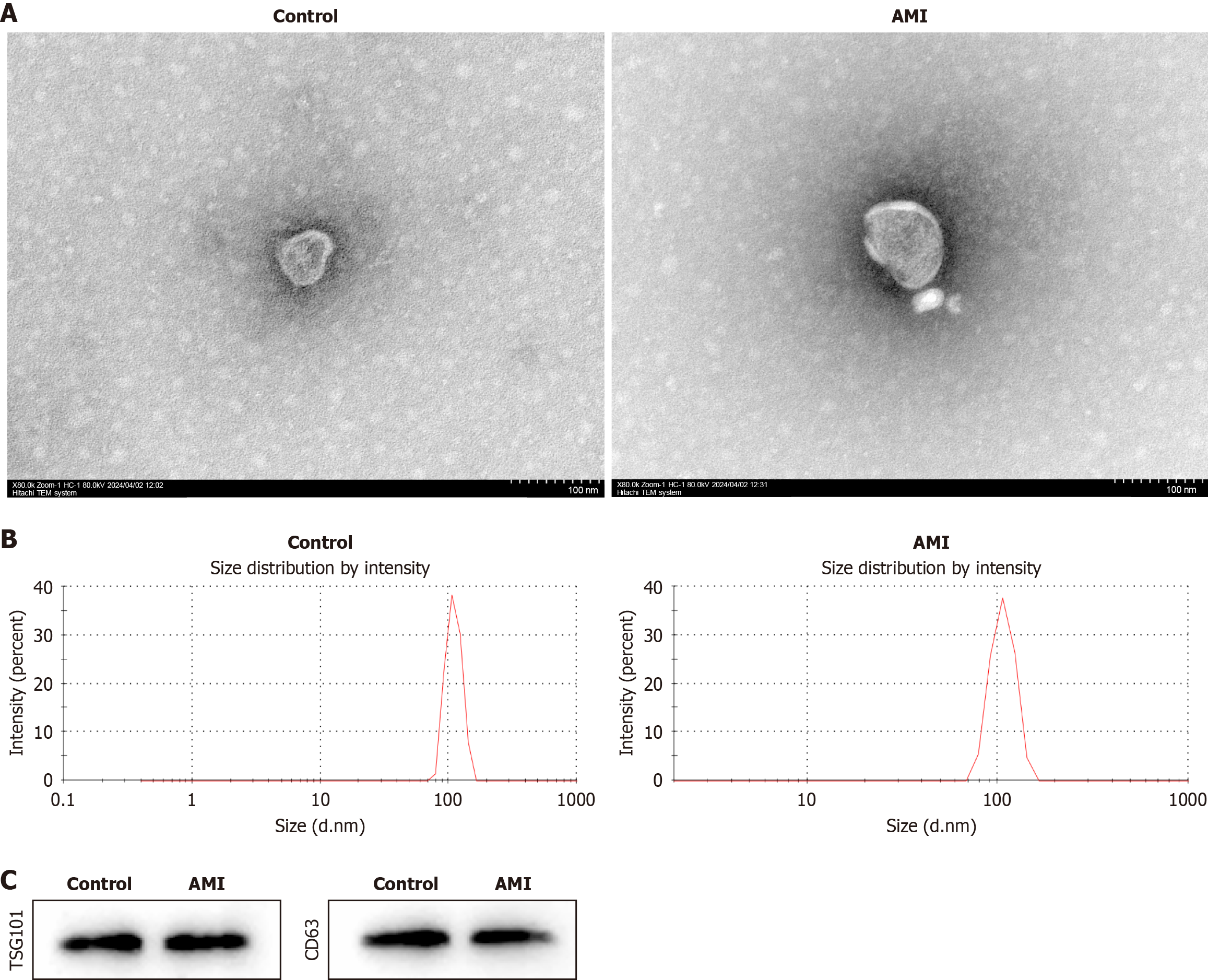

Figure 1 The characteristics of peripheral blood-derived mesenchymal stem cells exosomes from acute mesenteric ischemia patients and controls. A: Transmission electron microscopy characterization of exosomes isolated from peripheral blood-derived mesenchymal stem cells of acute mesenteric ischemia patients and controls (scale bar: 100 nM); B: Nanoparticle tracking analysis characterization of exosomes isolated from peripheral blood-derived mesenchymal stem cells of acute mesenteric ischemia patients and controls; C: Expression levels of two exosome marker proteins (tumor susceptibility gene 101 and CD63) were measured by western blot. AMI: Acute mesenteric ischemia; TSG101: Tumor susceptibility gene 101.

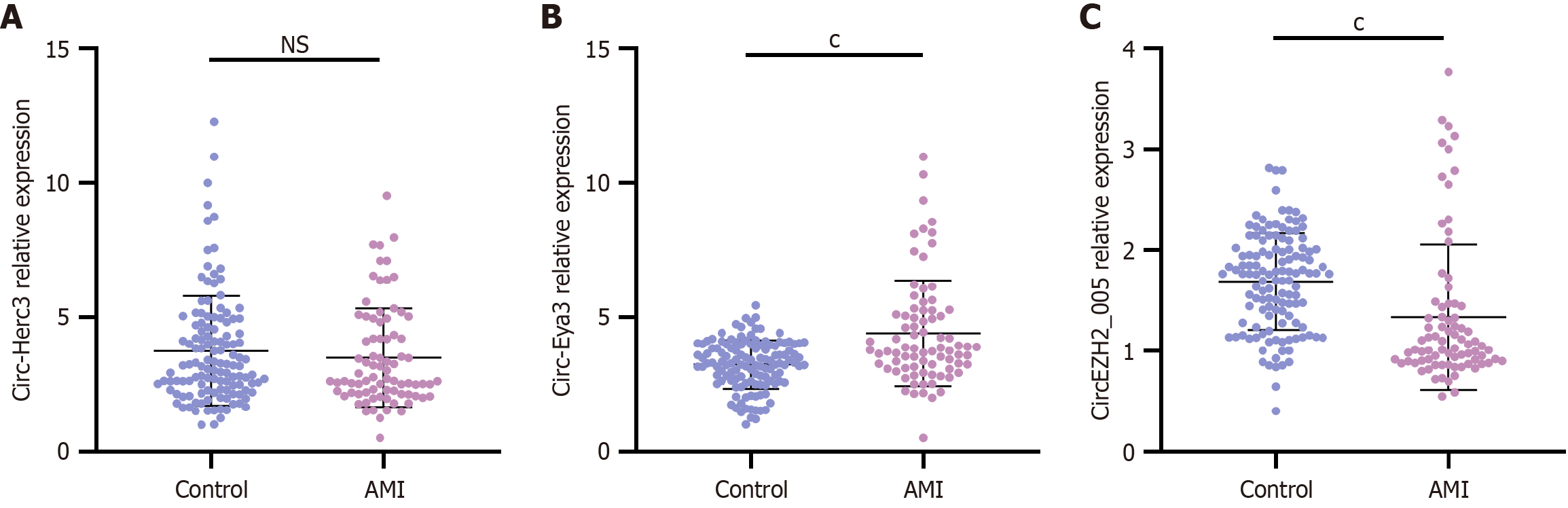

Figure 2 The expression levels of circ-Herc3, circ-Eya3, and circEZH2_005 in peripheral blood-derived mesenchymal stem cells exosomes from acute mesenteric ischemia patients and controls. A-C: Quantitative real-time polymerase chain reaction was used to measure the circ-Herc3 (A), circ-Eya3 (B), and circEZH2_005 (C) levels in peripheral blood-derived mesenchymal stem cells exosomes of different groups. ^cP < 0.001. NS: No significant; AMI: Acute mesenteric ischemia.

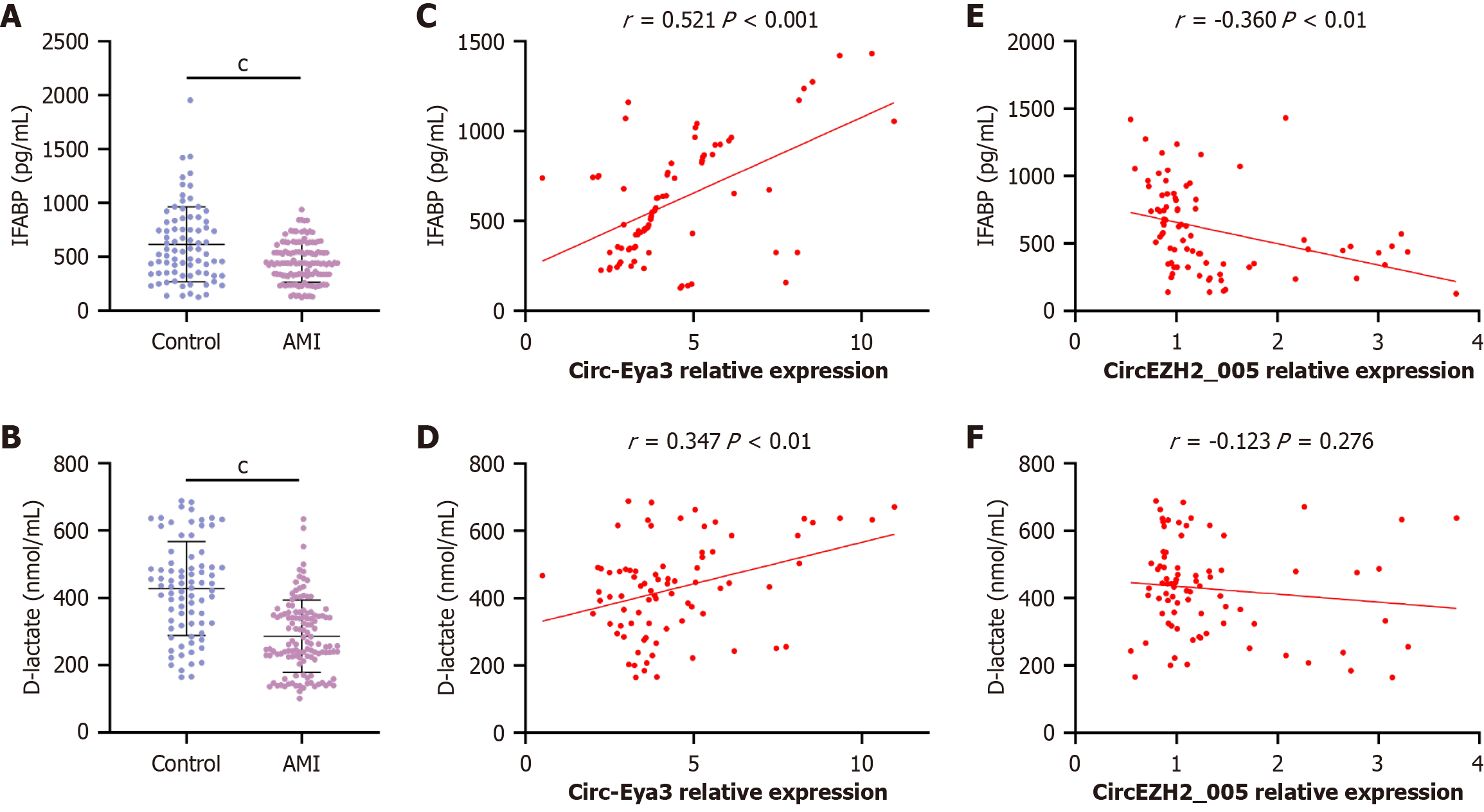

Figure 3 Correlations between peripheral blood-derived mesenchymal stem cells exosomal circ-Eya3 and circEZH2_005 with plasma intestinal fatty acid binding protein and D-lactate. A and B: The levels of plasma intestinal fatty acid binding protein (IFABP) (A) and D-lactate (B) in acute mesenteric ischemia (AMI) patients and controls were determined by enzyme-linked immunosorbent assay; C and D: Correlations between the levels of peripheral blood-derived mesenchymal stem cells exosomal circ-Eya3 with plasma IFABP (C) and D-lactate (D) in AMI patients; E and F: Correlations between the levels of peripheral blood-derived mesenchymal stem cells exosomal circEZH2_005 with plasma IFABP (E) and D-lactate (F) in AMI patients. ^cP < 0.001. IFABP: Intestinal fatty acid binding protein; AMI: Acute mesenteric ischemia.

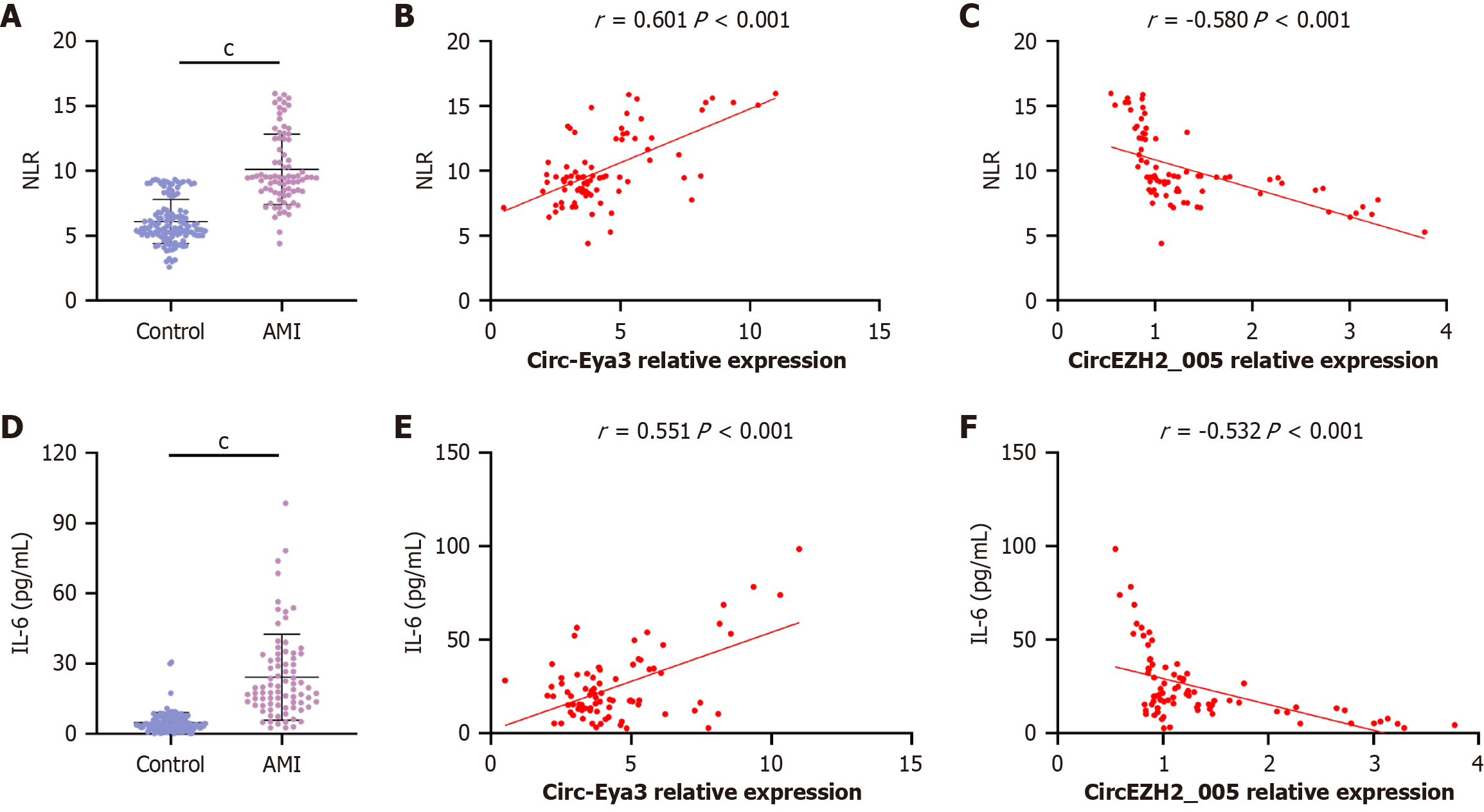

Figure 4 Correlations between peripheral blood-derived mesenchymal stem cells exosomal circ-Eya3 and circEZH2_005 with neutrophil-to-lymphocyte ratio and interleukin-6. A: The levels of neutrophil-to-lymphocyte ratio in acute mesenteric ischemia (AMI) patients and controls were calculated by the ratio of neutrophils count/Lymphocytes count; B and C: Correlations between the levels of neutrophil-to-lymphocyte ratio with peripheral blood-derived mesenchymal stem cells exosomal circ-Eya3 (B) or circEZH2_005 (C) in AMI patients; D: The levels of interleukin-6 in AMI patients and controls were determined by enzyme-linked immunosorbent assay; E and F: Correlations between the levels of interleukin-6 with peripheral blood-derived mesenchymal stem cells exosomal circ-Eya3 (E) or circEZH2_005 (F) in AMI patients. ^cP < 0.001. NLR: Neutrophil-to-lymphocyte ratio; AMI: Acute mesenteric ischemia; IL: Interleukin.

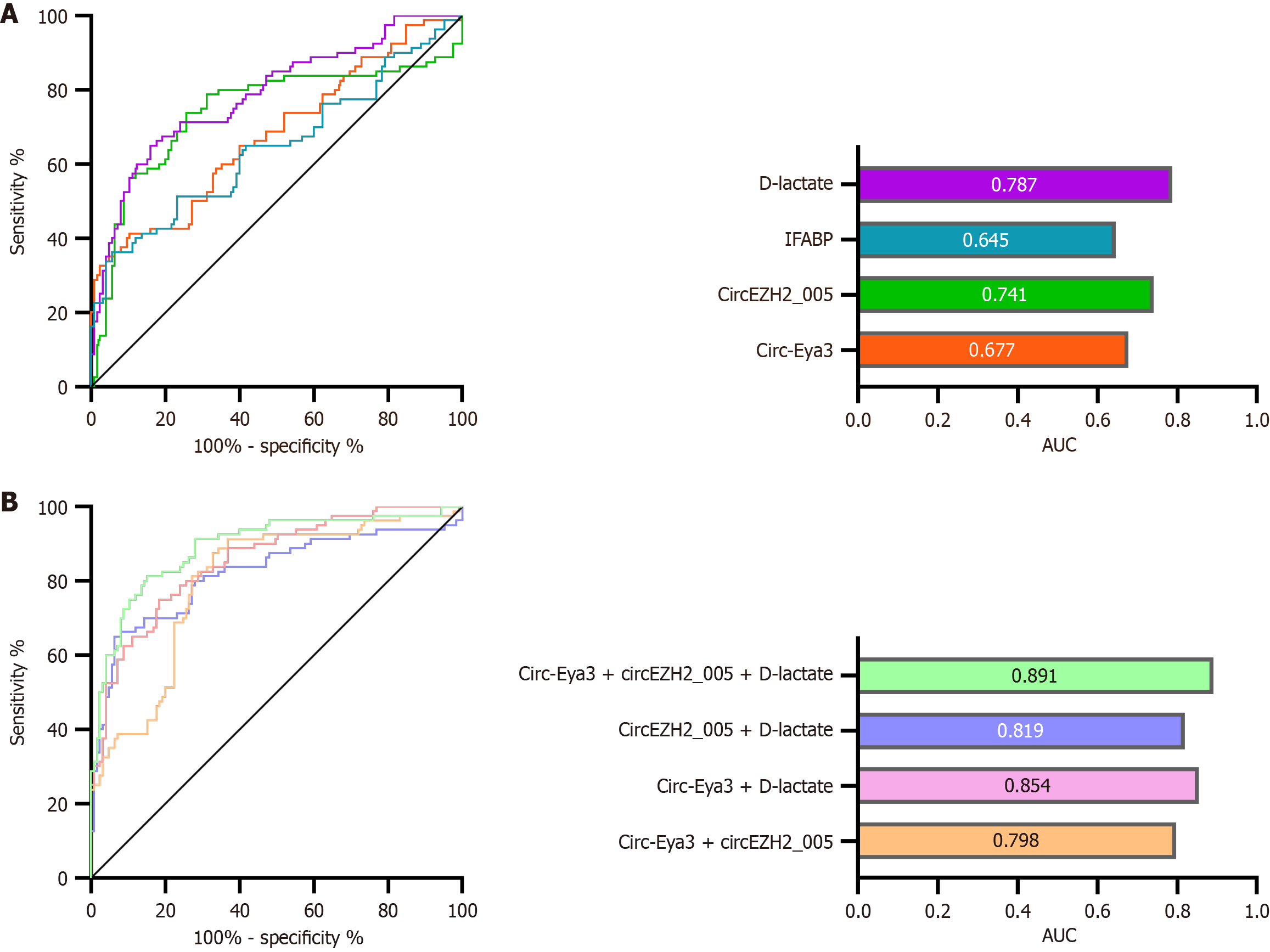

Figure 5 Diagnose values of peripheral blood-derived mesenchymal stem cells exosomal circ-Eya3 and circEZH2_005 to acute mesenteric ischemia patients. A: Separate receiver operating characteristic of circ-Eya3, circEZH2_005, intestinal fatty acid binding protein, and D-lactate; B: Combined receiver operating characteristic of circ-Eya3, circEZH2_005 and D-lactate. AUC: Area under the curve.

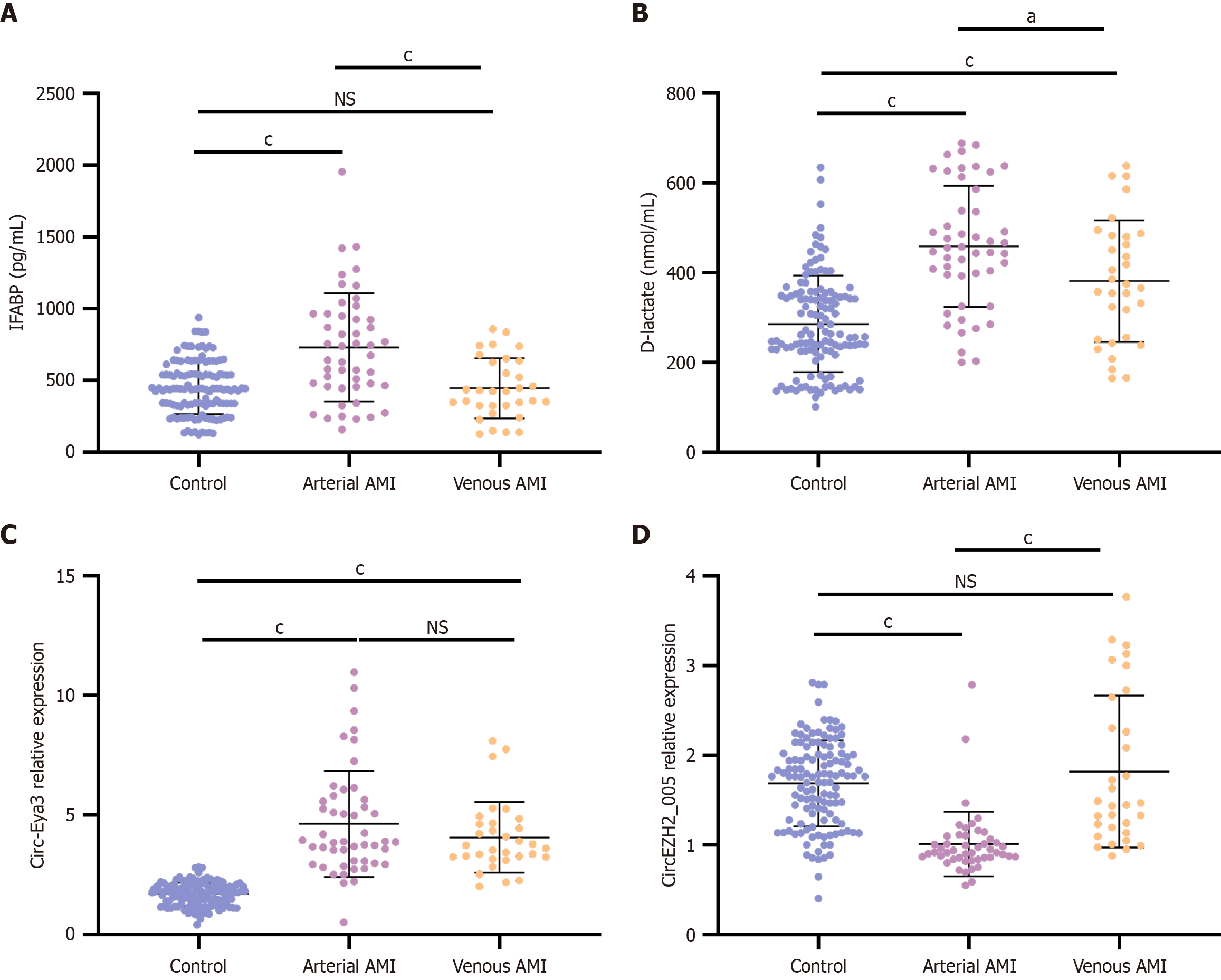

Figure 6 The differential levels of circ-Eya3, circEZH2_005, intestinal fatty acid binding protein and D-lactate in arterial vs venous acute mesenteric ischemia subtypes. A and B: Enzyme-linked immunosorbent assay was applied to determine the intestinal fatty acid binding protein (A) and D-lactate (B) levels in plasma from different groups; C and D: Quantitative real-time polymerase chain reaction was utilized to measure the expression of circ-Eya3 (C) and circEZH2_005 (D) in peripheral blood-derived mesenchymal stem cells exosomes of different groups. ^aP < 0.05, ^cP < 0.001. NS: No significant; IFABP: Intestinal fatty acid binding protein; AMI: Acute mesenteric ischemia.

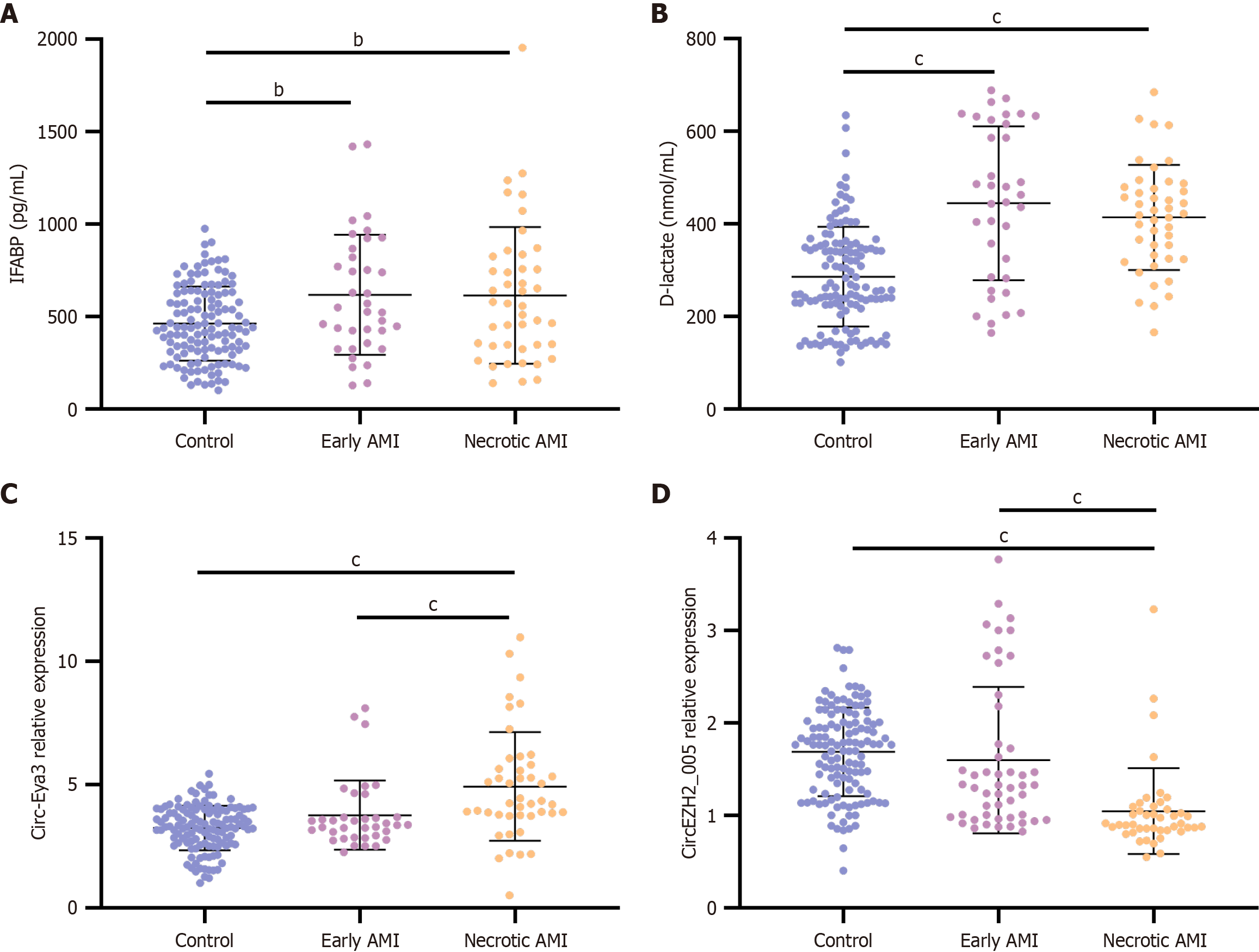

Figure 7 The differential levels of circ-Eya3, circEZH2_005, intestinal fatty acid binding protein and D-lactate in early vs late necrotic acute mesenteric ischemia subtypes. A and B: Enzyme-linked immunosorbent assay was applied to determine the intestinal fatty acid binding protein (A) and D-lactate (B) levels in plasma from different groups; C and D: Quantitative real-time polymerase chain reaction was utilized to measure the expression of circ-Eya3 (C) and circEZH2_005 (D) in peripheral blood-derived mesenchymal stem cells exosomes of different groups. ^bP < 0.01, ^cP < 0.001. IFABP: Intestinal fatty acid binding protein; AMI: Acute mesenteric ischemia.

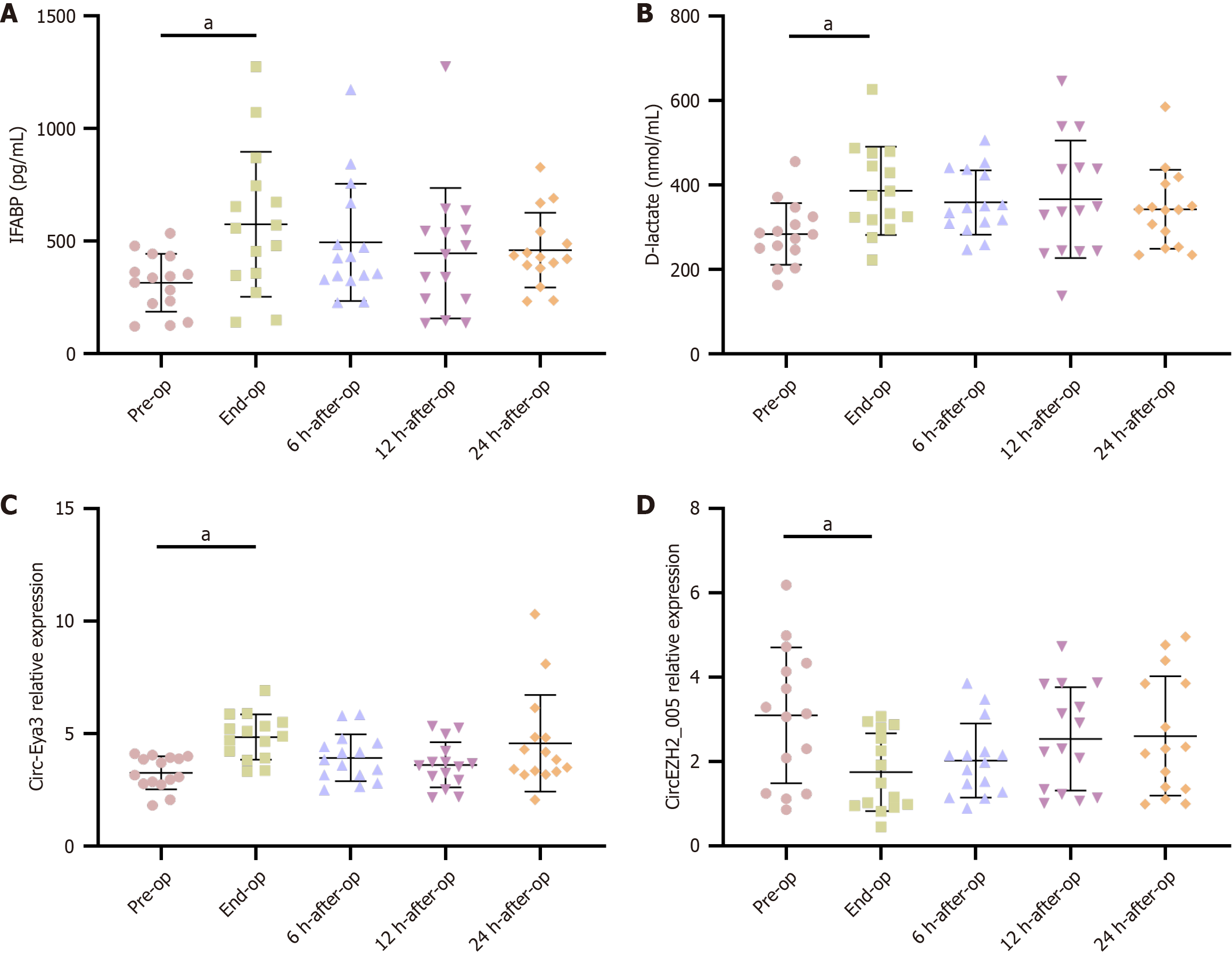

Figure 8 The dynamic levels of circ-Eya3, circEZH2_005, intestinal fatty acid binding protein and D-lactate before and after operation in acute mesenteric ischemia patients. A and B: Plasma intestinal fatty acid binding protein (A) and D-lactate (B) levels in acute mesenteric ischemia patients before and after operation were detected by enzyme-linked immunosorbent assay; C and D: Circ-Eya3 (C) and circEZH2_005 (D) expression levels in acute mesenteric ischemia patients before and after operation were analyzed through quantitative real-time polymerase chain reaction. ^aP < 0.05. IFABP: Intestinal fatty acid binding protein.
