Computed tomography-guided percutaneous biopsy for assessing tumor heterogeneity in neuroendocrine tumor metastases to the liver

Figure 1 Computed tomography-guided biopsy of a pancreatic neuroendocrine tumor liver metastasis. A: Axial contrast-enhanced computed tomography (CT) reveals an arterially enhancing 45 cm lesion in the right lobe of the liver (arrow); B: Axial contrast-enhanced CT reveals an artery nearby the lesion (arrow); C: Axial contrast-enhanced CT reveals a portal vein nearby the lesion (arrow); D: Procedural non-enhanced CT image at the same cross-sectional level reveals the lesion to be hypoattenuating to the liver; E: 17-gauge introducer needle (arrow) was placed in approximate location of the lesion based on the avoidance of damage to artery within the liver and portal vein; F: Post-procedural non-enhanced CT image reveals no complications.

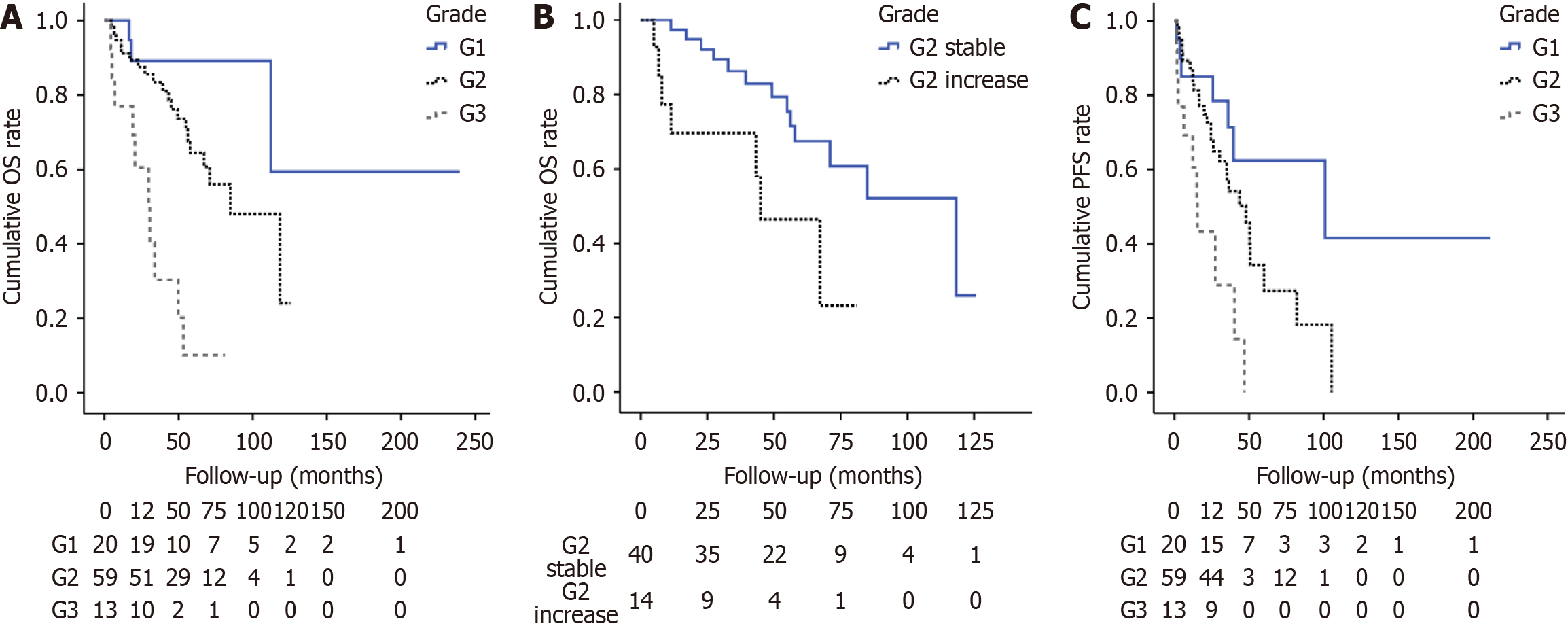

Figure 2 Survival outcomes of gastroenteropancreatic neuroendocrine tumors: analysis of overall survival and progression-free survival based on initial grades and G2 group variations. Numbers at risk indicate patients remaining in follow-up at each time point, calculated via reverse Kaplan-Meier method (G1: Ki-67 ≤ 2%; G2: 3%-20%; G3: > 20%). A: The overall survival (OS) of patients with gastroenteropancreatic neuroendocrine tumors (GEP-NETs) with different grades at initial diagnosis. Patients with G1 or G2 had better overall survival rates when compared with patients with G3 (P < 0.001); B: The OS of patients with GEP-NETs in stable G2 and increased G2 groups. “Stable G2” (n = 32): Liver metastases retained G2 classification. “Increased G2” (n = 14): Liver metastases upgraded from G2 (primary) to G3. The OS of stable G2 patients was longer than for increased G2 patients (P = 0.016); C: Progression-free survival in patients with GEP-NETs with different grades at initial diagnosis. Patients with G1 or G2 had a better progression-free survival when compared with patients with G3 grades (P = 0.001).
