ANXA13 expression patterns in hepatocellular carcinoma and impact on tumor behavior

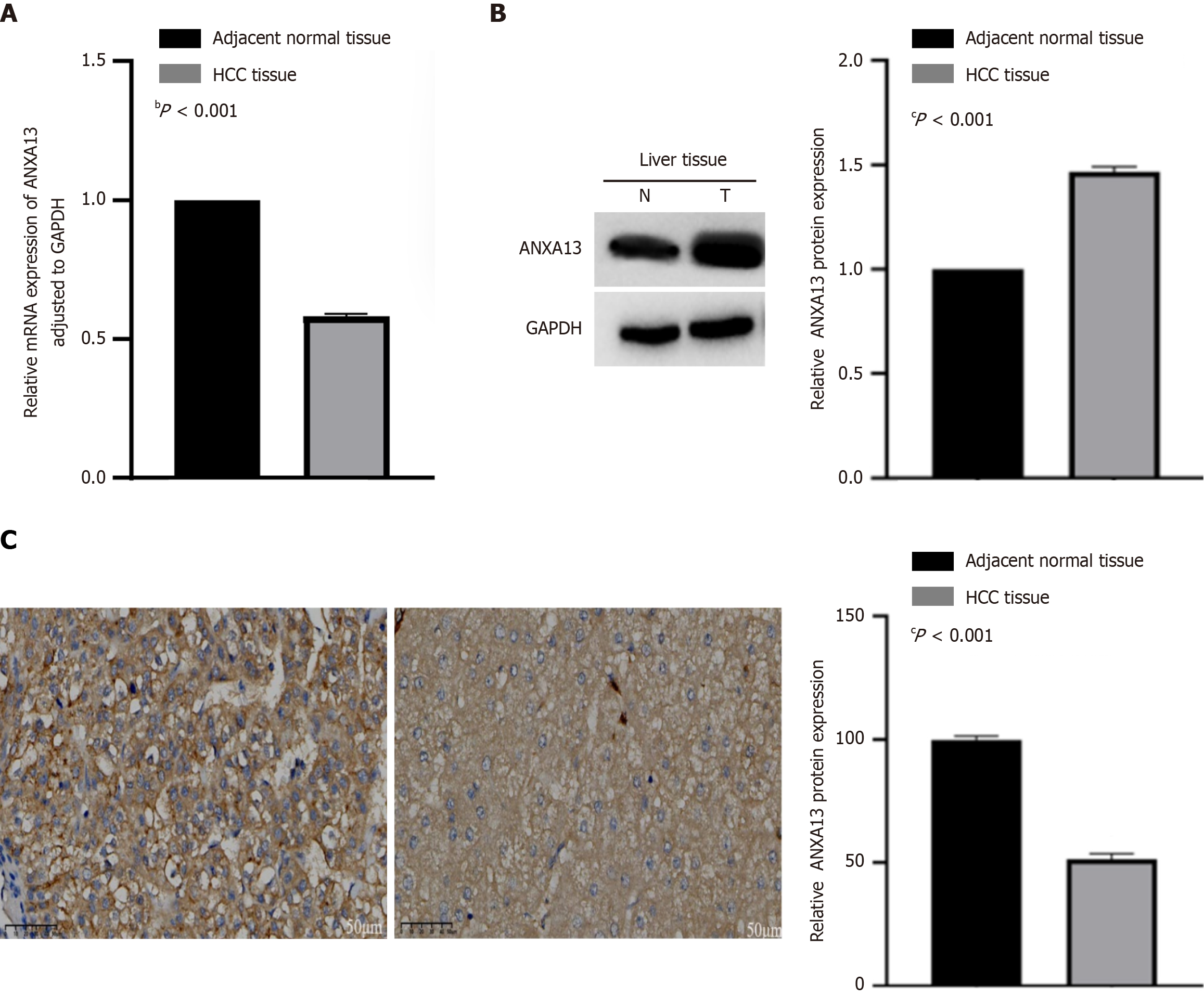

Figure 1 Expression levels of ANXA13 in hepatocellular carcinoma tissues and adjacent non-tumor tissues. A: Detection of ANXA13 expression in liver cancer tissues and adjacent non-cancerous tissues by quantitative real-time PCR; B: Western blotting shows that the ANXA13 protein is overexpressed in Hepatocellular carcinoma (HCC) tissues. GAPDH was used as a loading control. Use Image J software to analyze protein bands for grayscale analysis, and normalize the grayscale values of the target protein before using GraphPad Prism software for statistical analysis; C: HCC and adjacent non-tumor tissues were subjected to immunohistochemical analysis using Diaminobenzidine staining. Representative images are shown (left panel, Scale bar: 50 μm), and the staining intensity was compared (right panel). Unpaired Student’s t-test was used for data analysis. All data were representative of at least three independent experiments (n = 3; error bar, SD). ^bP < 0.001; ^cP < 0.0001. HCC: Hepatocellular carcinoma.

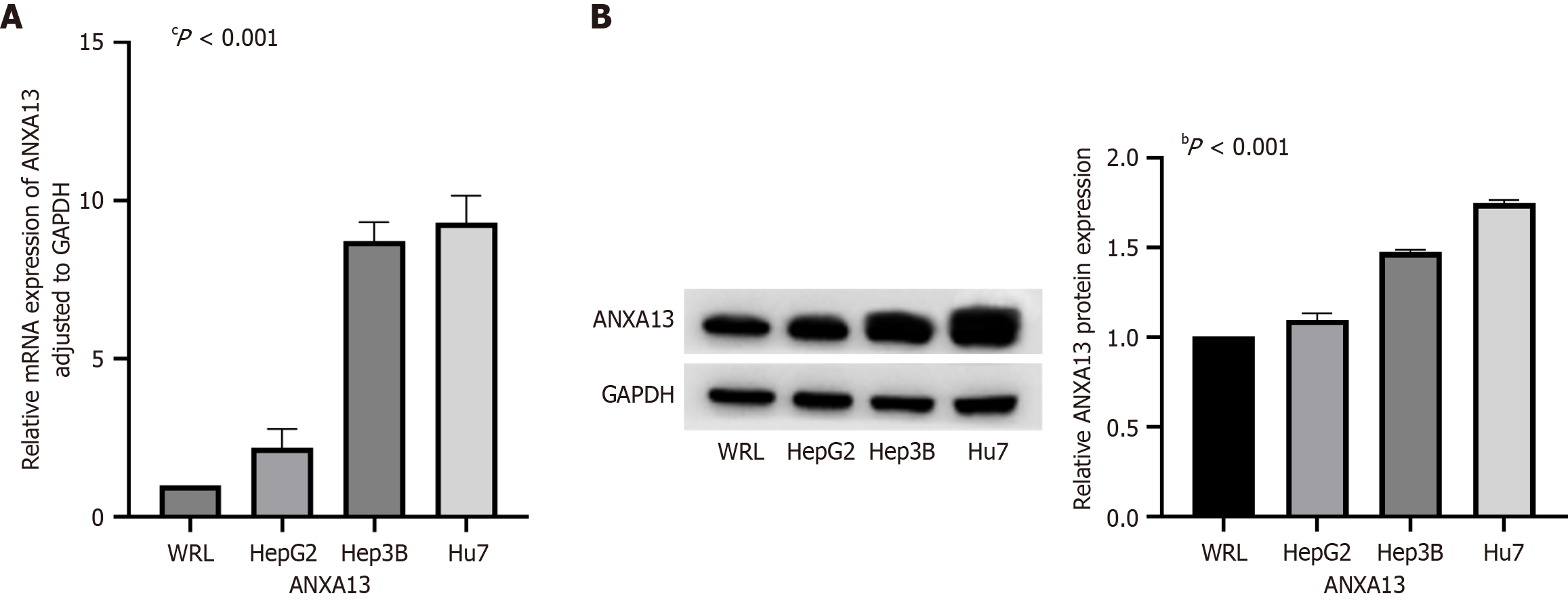

Figure 2 Expression levels of the ANXA13 gene in normal liver cell lines and three types of liver cancer cell lines (Hep3B, Huh7, HepG2). A: Quantitative real-time PCR was used to detect the expression of the ANXA13 gene in the normal liver cell line (WRL) and three hepatocellular carcinoma (HCC) cell lines (Hep3B, Huh7, HepG2); B: Western blot was used to detect the expression levels and band intensities of ANXA13 protein in the WRL and three HCC cell lines (Hep3B, Huh7, HepG2). GAPDH was used as a loading control. Unpaired Student’s t-test and analysis of variance were used for data analysis. All data were representative of at least three independent experiments (n = 3; error bar, SD). ^bP < 0.001; ^cP < 0.0001.

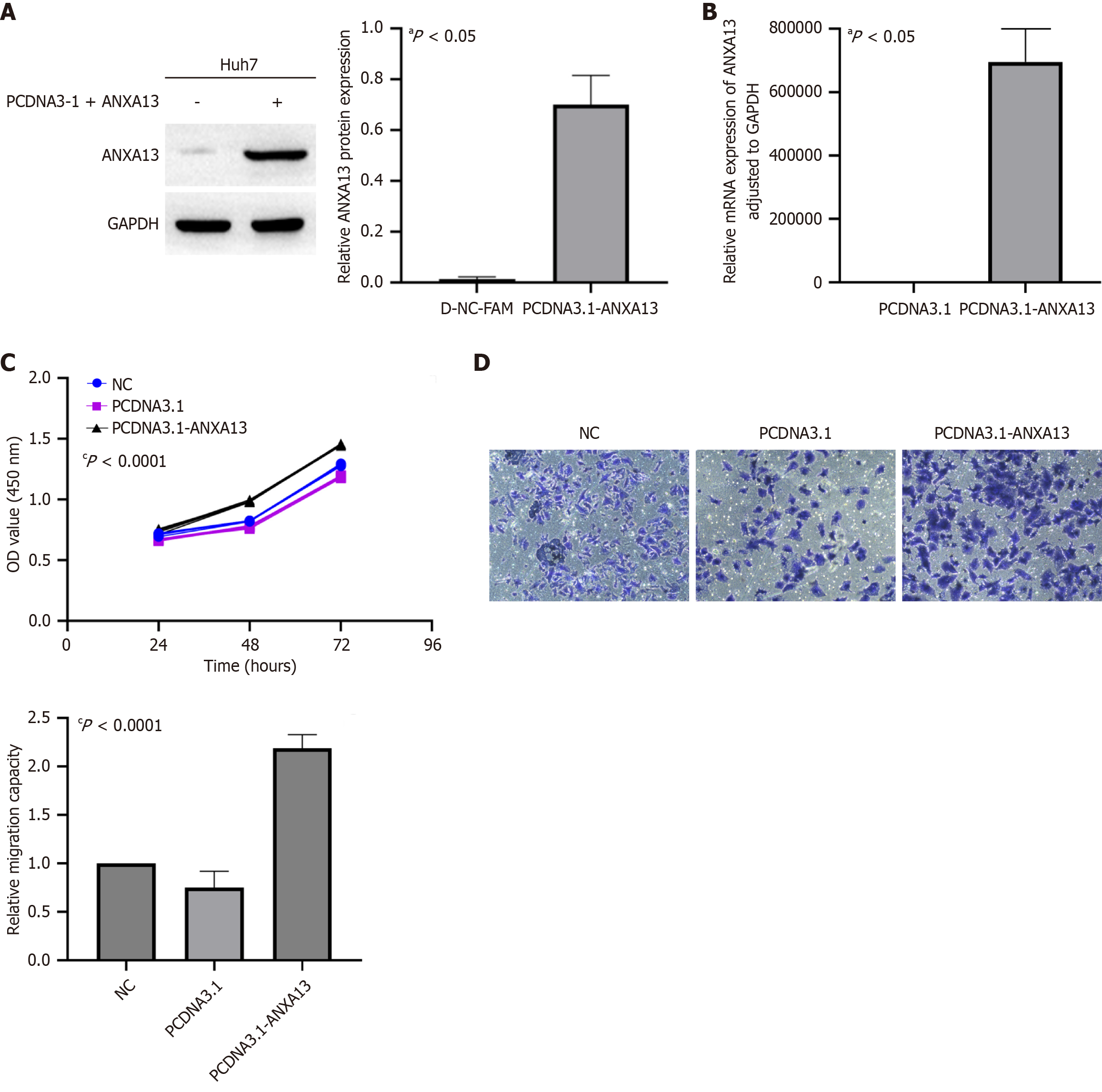

Figure 3 Overexpression of ANXA13 enhances cell migration and viability in the Huh7 cell line. A and B: The expression of ANXA13 after plasmid transfection was assessed using quantitative real-time polymerase chain reaction and western blot analysis; C: Cell proliferation ability in the NC group, pcDNA3.1 group, and pcDNA3.1-ANXA13 group was assessed using the cell counting kit-8 assay; D: The migratory ability of Huh7 cells was evaluated using the Transwell assay. Scale bar: 20 μm. Unpaired Student’s t-test and analysis of variance were used for data analysis. All data were representative of at least three independent experiments (n = 3; error bar, SD). ^aP < 0.05; ^cP < 0.0001.
