Endoscopic treatment modalities for colonic diverticular bleeding: A systematic review with direct and network meta-analyses

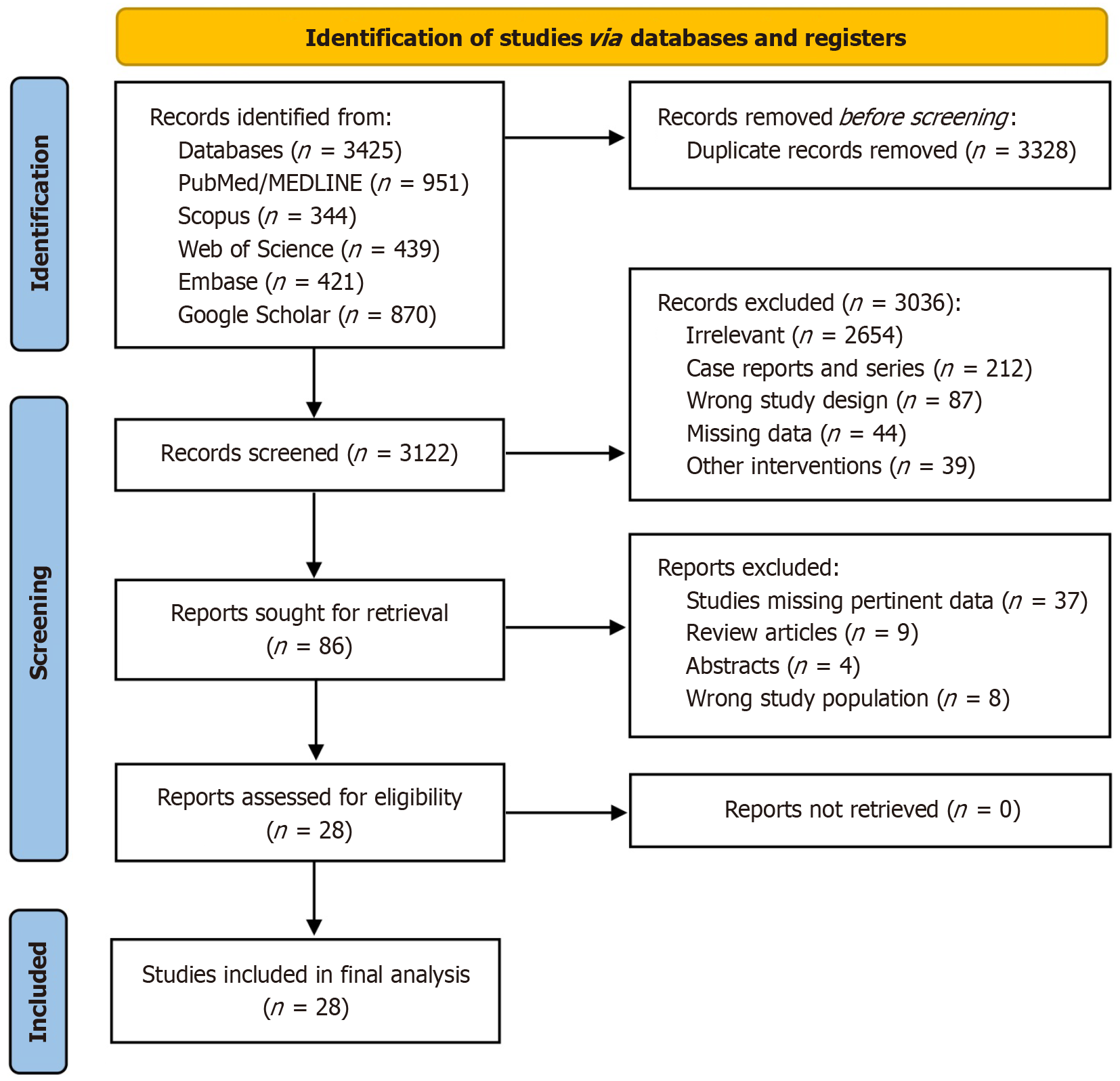

Figure 1  Preferred Reporting Items for Systematic Reviews and Meta-Analyses flow diagram of the search strategy.

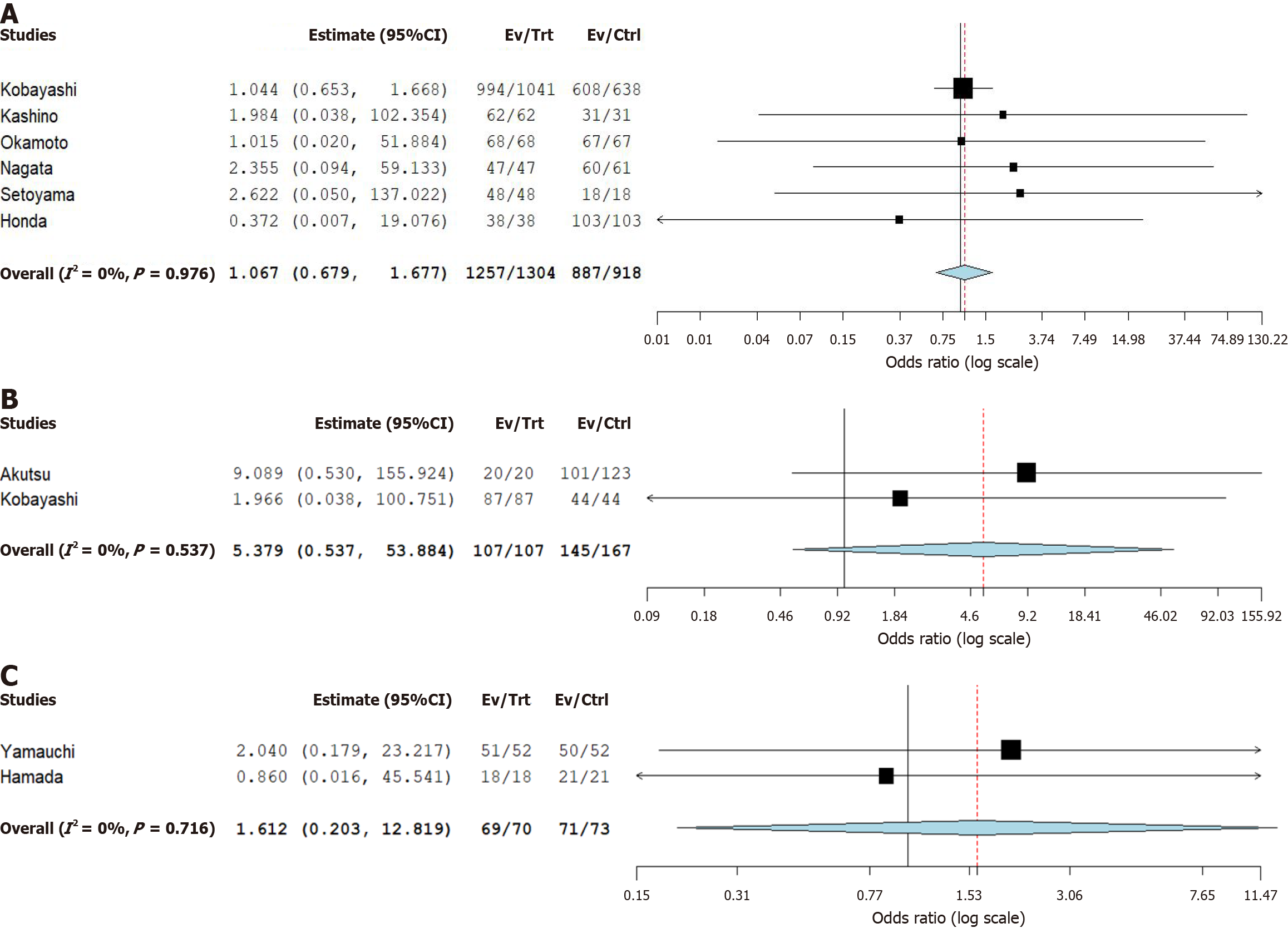

Figure 2 Forest plots showing the pooled estimates of initial hemostasis between different endoscopic techniques. A: Clip and band; B: Clip and snare; C: Band and snare.

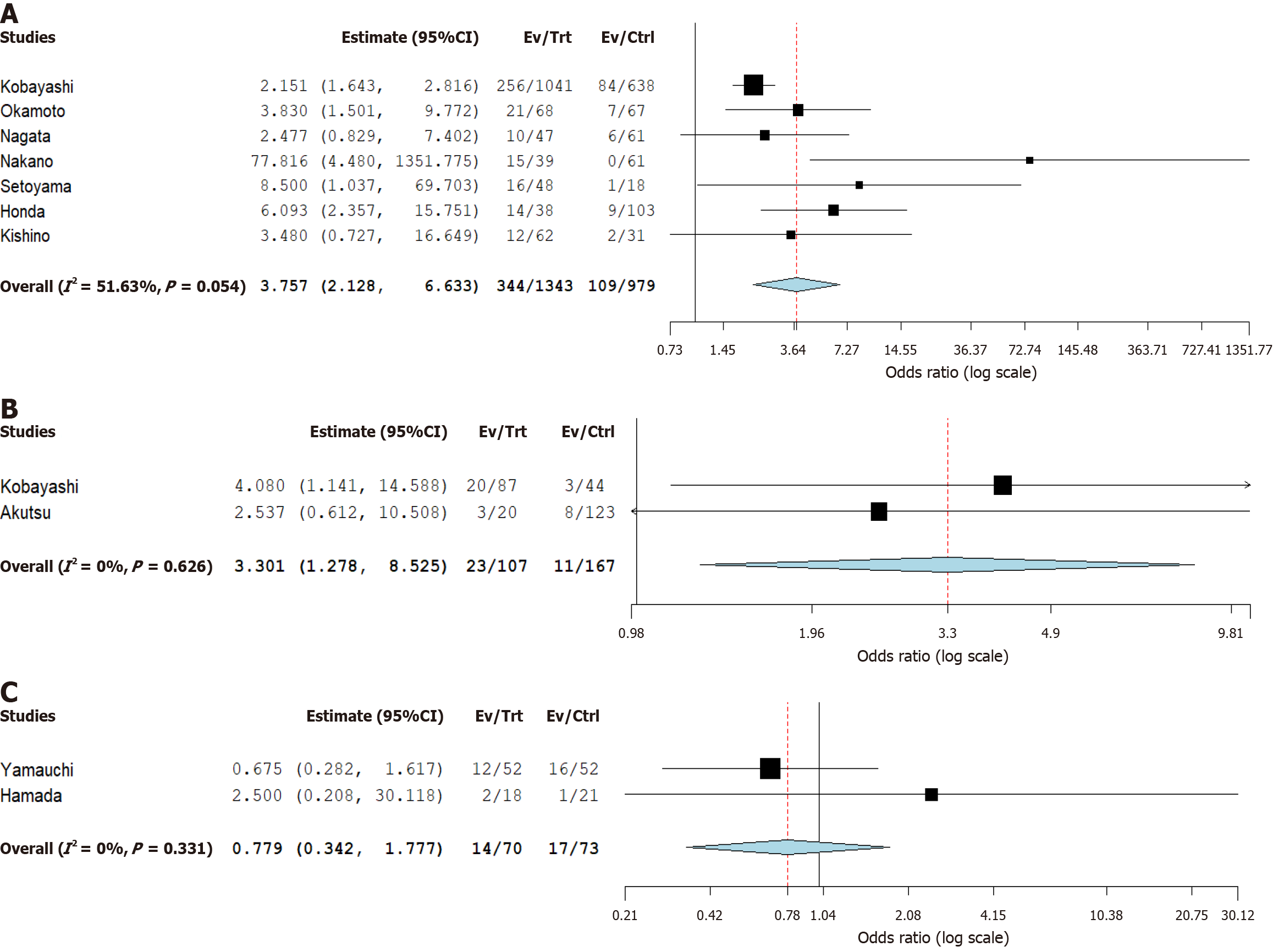

Figure 3 Forest plots showing the pooled estimates of early rebleeding between different endoscopic techniques. A: Clip and band; B: Clip and snare; C: Band and snare.

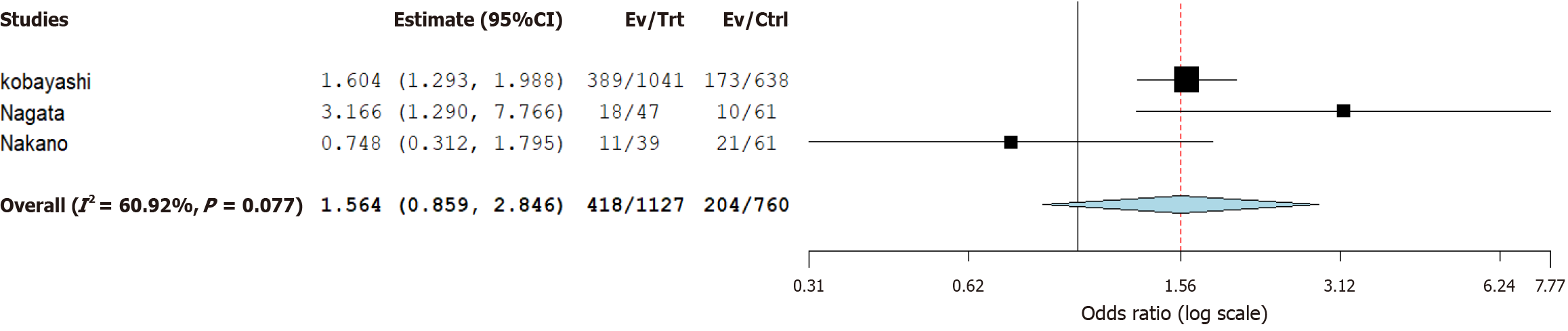

Figure 4  Forest plot showing the pooled estimates of late rebleeding between clip and band.

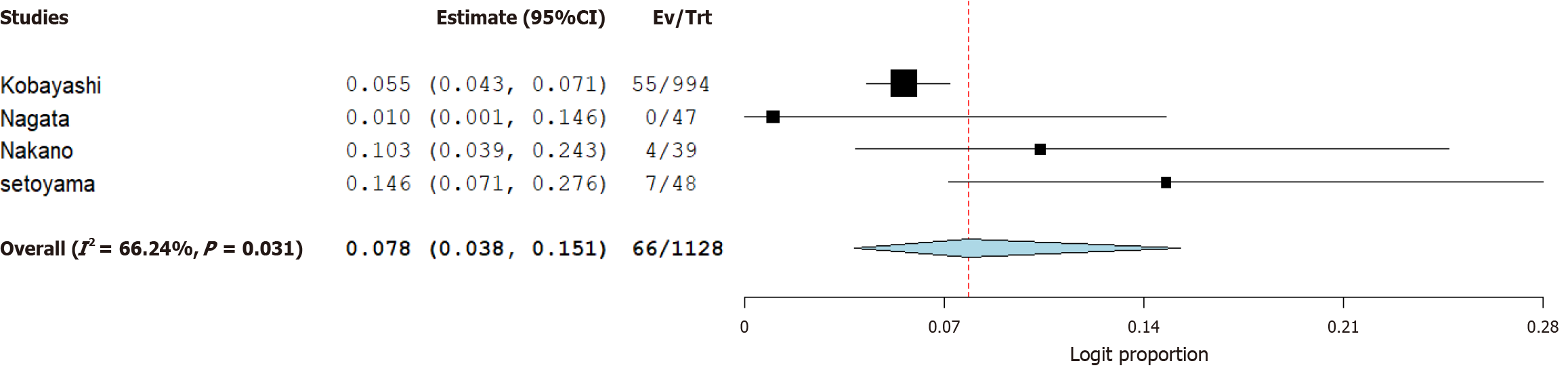

Figure 5  Forest plot showing the pooled estimates of transarterial embolization and surgery between clip and band.

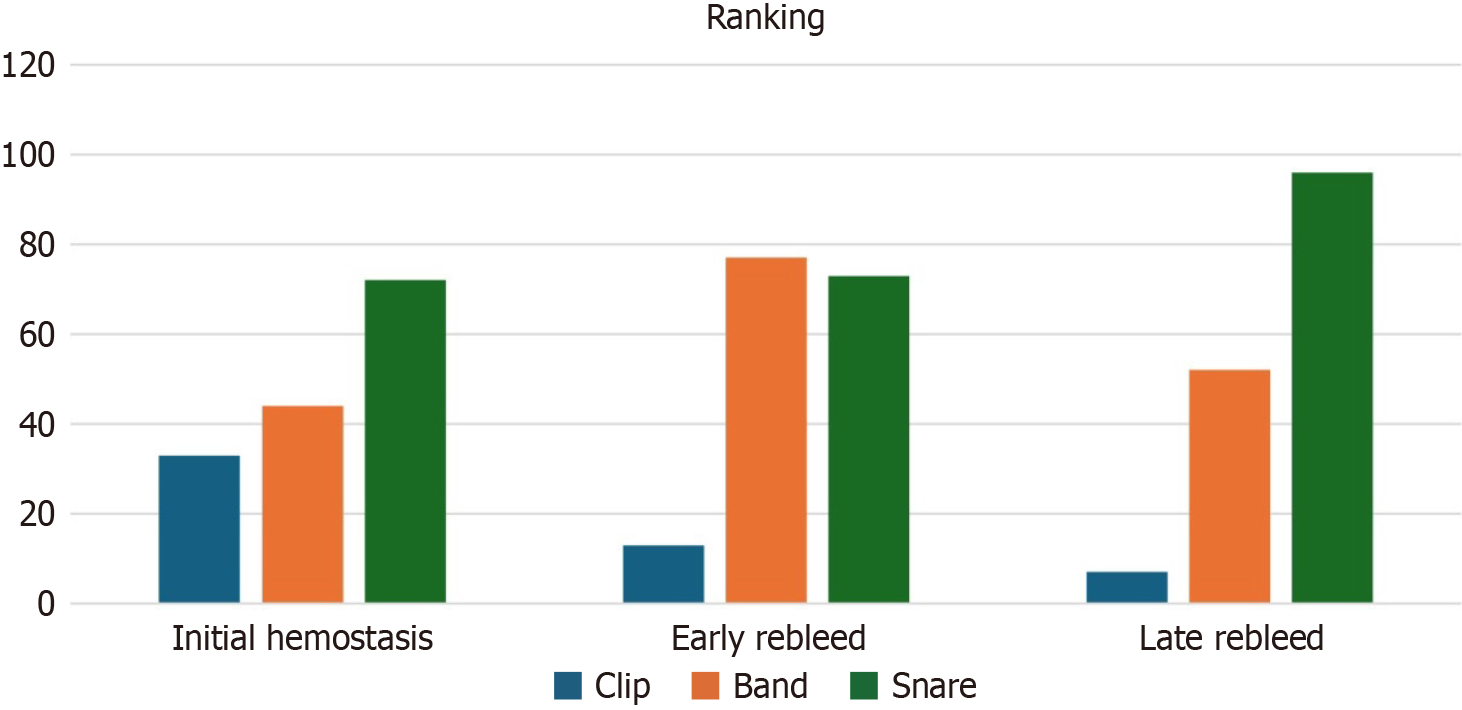

Figure 6  Net-ranking of included studies.
