Letter to the Editor: Exosomal miR-191 activates the NF-κB pathway to drive M2 macrophages polarization in colorectal cancer

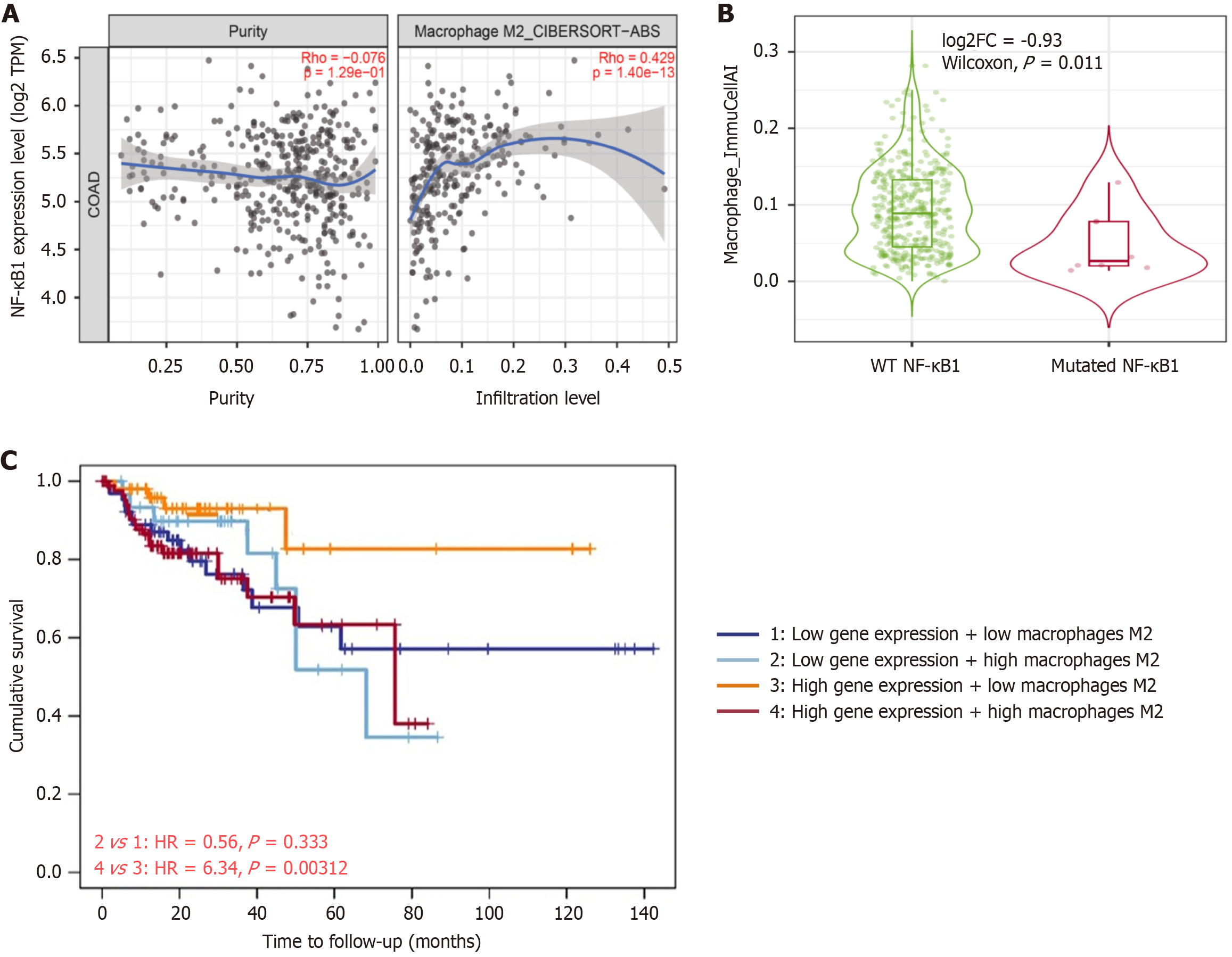

Figure 1 NF-κB correlates with M2 macrophages infiltration and disease-free interval in colorectal cancer (The cancer genomic atlas; tumor immune estimation resource version 3). A: Correlation plots from the tumor immune estimation resource version 3 Gene module comparing NF-κB1 expression (log2 transcripts per million) vs tumor purity (left) and vs inferred M2 macrophage infiltration (right; CIBERSORT-ABS), with Spearman’s rho and P values displayed; B: Violin/box plots showing how M2 macrophages infiltration differs between wild-type and mutant NF-κB1 tumors (log2 FC = -0.93; Wilcoxon P = 0.011); C: Kaplan–Meier disease-free interval (DFI) curves categorized by NF-κB1 expression (high/Low) and M2 macrophage level (high/Low; quanTIseq). A high M2 Level only predicts a worse DFI in the NF-κB1-high group (HR = 6.34, P = 0.00312). When NF-κB1 is low, there is no significant difference (HR = 0.56, P = 0.333). TPM: Transcripts per million.

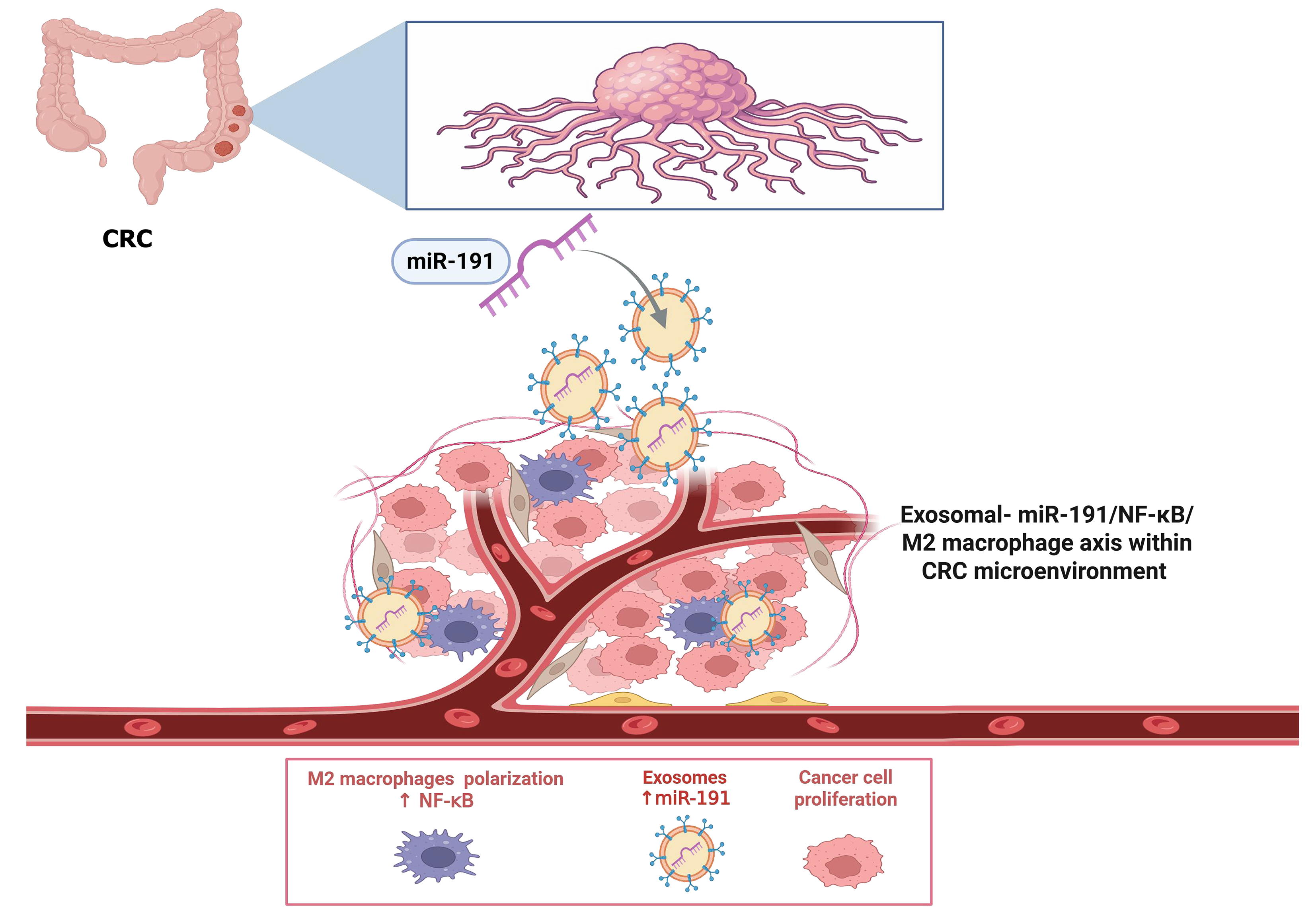

Figure 2 The colorectal cancer microenvironment exhibits an exosomal miR-191/NF-κB/M2 macrophage axis. Colorectal cancer cells secrete exosomes containing miR-191 into the tumor microenvironment, where interact with macrophages by being taken in and carrying cargo including miR-191, which can change macrophages polarizations. Exosomal miR-191 stimulates NF-κB activation, shifting macrophages polarization towards an M2 macrophages, (pro-tumor phenotype). Enhanced M2 macrophages activity facilitates an immunosuppressive microenvironment that promotes tumor cell survival, proliferation, and cancer progression. Created in BioRender (Supplementary material). CRC: Colorectal cancer.
