Endoscopic retrograde cholangiopancreatography treatment of cholangitis stone in a patient with total situs inversus: A case report

Abstract

BACKGROUND

Situs inversus viscerum (SIV) is a rare autosomal recessive genetic disorder characterized a complete mirror-image organ reversal in the thoracic and abdominal cavities. Its low incidence presents considerable challenges in clinical diagnosis and treatment, especially concerning gastrointestinal endoscopic procedures.

CASE SUMMARY

Herein, we report a case of an 80-year-old male with choledocholithiasis and acute obstructive empyematous cholangitis. Imaging revealed total visceral inversion in the patient. Endoscopic retrograde cholangiopancreatography (ERCP) was successfully performed to remove the stones, resulting to substantial relief of clinical symptoms and gradual improvement of the patient’s condition, leading to successful recovery and discharge.

CONCLUSION

Therapeutic ERCP is a safe and effective surgical option for patients with SIV. The main focus for successful ERCP in patients with SIV includes positioning adjustments during the surgical process and using the dual-guidewire technique for biliary cannulation.

Key Words: Biliary tract; Catheterization; Situs inversus viscerum; Endoscopic retrograde cholangiopancreatography; Cholangitis stone; Case report

Core Tip: We describe a rare cholangitis case in a patient with complete visceral inversion treated with endoscopic retrograde cholangiopancreatography. Splanchnic inversion (SIV) is a rare congenital disorder characterized by mirror-image inversion of thoracic and abdominal organs, usually with minimal clinical impact. Although a direct link between SIV and specific organ abnormalities has not yet been established, SIV complicates diagnosis and treatment due to changes in its anatomy. Herein, therapeutic endoscopic retrograde cholangiopancreatography was a safe and effective approach in the patient with SIV. Positioning adjustments and specialized techniques, such as the dual-guidewire approach to biliary cannulation, could improve the procedure success rate.

INTRODUCTION

Situs inversus viscerum (SIV) is a rare condition characterized by a complete mirror-image organ reversal within the thoracic and abdominal cavities. This anomaly is typically inherited in an autosomal recessive manner, with an incidence of approximately 1/5000 to 1/10000 in neonates[1]. The incidence is marginally higher in males than in females, and most patients may not exhibit considerable clinical symptoms or discomfort, with minimal impact on daily life[2]. To date, no direct association has been established between visceral organ abnormalities and SIV; however, the unique anatomical structure does pose certain difficulties for clinical diagnosis and treatment.

Cholelithiasis is a common disease of the biliary tract. Although SIV is not considered a high-risk factor for cholelithiasis, its abnormal visceral organ positioning may complicate diagnosis. Abnormalities in the anatomical structure of the gallbladder and bile ducts may lead to misinterpretation of symptoms, prolonging the diagnostic process. Endoscopic retrograde cholangiopancreatography (ERCP) the preferred method for diagnosing and treating choledocholithiasis owing to its short procedure time, minimal trauma, and high diagnostic accuracy (96%-100%). Nevertheless, even experienced endoscopists may face challenges when performing ERCP on patients with situs inversus and choledocholithiasis. Herein, we report a rare case of a patient with total visceral inversion and associated choledocholithiasis, successfully treated with ERCP.

CASE PRESENTATION

Chief complaints

In September 2024, an 80-year-old male presented to our emergency department with a continuous left upper abdominal pain lasting 8 hours.

History of present illness

The patient reported persistent left upper quadrant abdominal pain for 8 hours, along with nausea without vomiting, fever, dizziness, headache, diarrhoea, or jaundice, and no aversion to oil. Upon admission to the emergency department, his blood pressure dropped to 70/40 mmHg, and he was admitted to the intensive care unit for further treatment and diagnosis.

History of past illness

The patient had no history of acute or chronic infectious diseases, cardiovascular disease, hypertension, diabetes, or surgery.

Personal and family history

There was no relevant medical history in the patient’s family.

Physical examination

The patient was conscious and bilaterally blind with unexamined pupils. A palpable apex beat felt in the right chest suggested possible dextrocardia. Tenderness in the left upper abdomen, positive Murphy’s sign, and no palpable liver or spleen under the ribs were observed. Negative shifting dullness and weak bowel sounds were noted. A urinary catheter was in place, and the urine was cloudy and purulent.

Laboratory examinations

Complete blood count: White blood cell count 12.31 × 10⁹/L. Biochemistry: Total bilirubin 48.1 μmol/L, direct bilirubin 46.14 μmol/L, γ-glutamyl transferase 905.1 U/L, alanine aminotransferase 84.1 U/L, aspartate aminotransferase 238.1 U/L.

Imaging examinations

A chest X-ray, electrocardiogram, and echocardiogram confirmed the previous diagnosis of dextrocardia. Computed tomography scans revealed that the liver was primarily located on the left side of the abdomen, while the spleen was on the right. The gallbladder was found on the left side, marginally enlarged, with visibly dilated bile ducts. Mild dilation of the intrahepatic bile ducts and a dense shadow at the terminal end of the common bile duct was observed (Figure 1A).

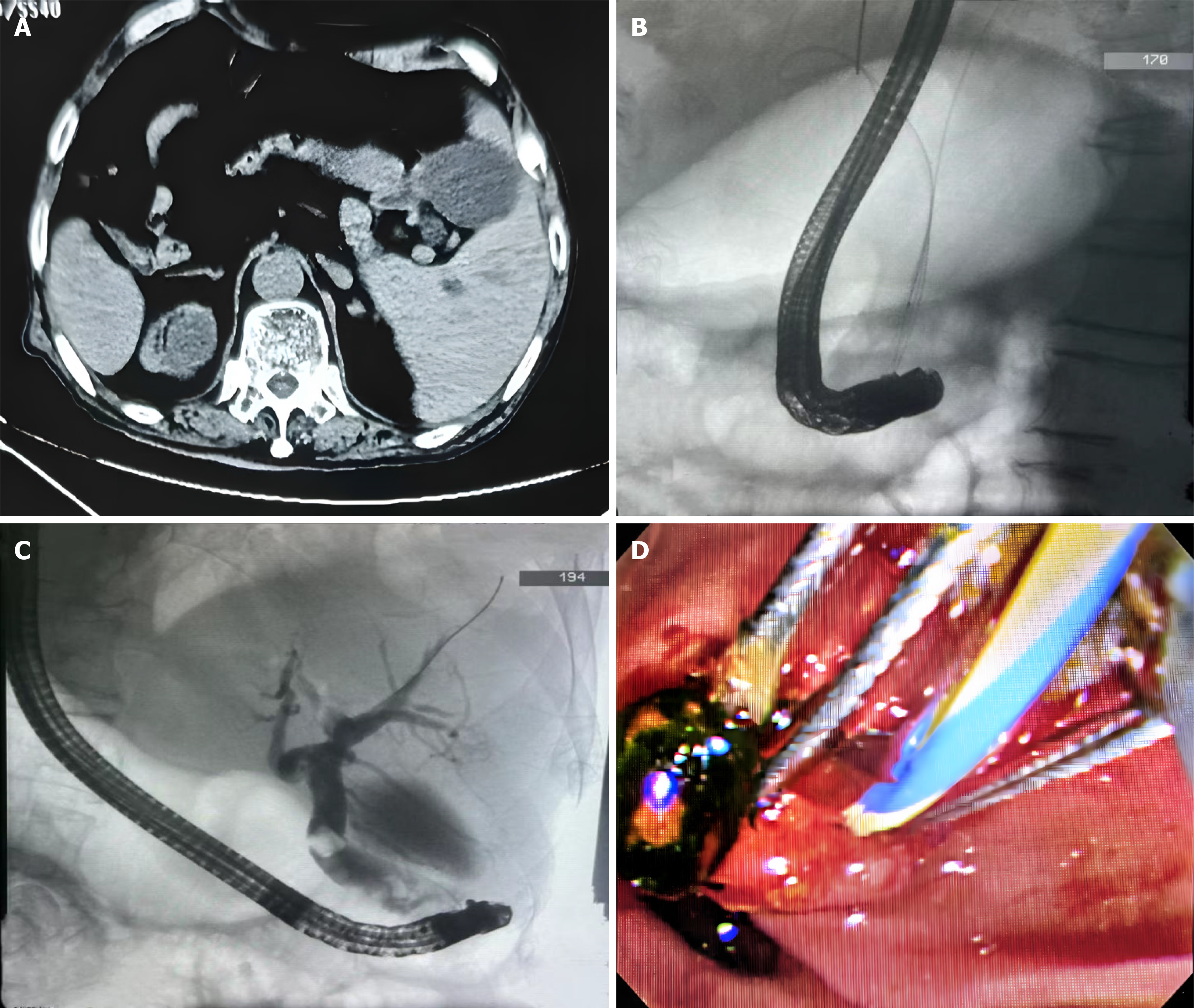

Figure 1 Multimodal imaging and interventional management in situs inversus associated biliary disorders: A pictorial case series. A: Computed tomography scan showing that the liver and gallbladder are primarily located on the left side of the abdomen, suggesting complete situs inversus viscerum; B: Successful bile duct insertion using the dual-guidewire strategy; C: Cholangiography shows dilated bile ducts and bile duct stones; D: Removed stones visible under endoscopy.

FINAL DIAGNOSIS

Based on laboratory tests and imaging studies, the patient was diagnosed with total visceral inversion, choledocholithiasis, and acute suppurative cholangitis.

TREATMENT

Given the patient’s severe infection and unstable hemodynamic status, treatment included piperacillin/tazobactam for antimicrobial therapy. Owing to severe inflammation, 10 mg aprepitant was administered once daily to suppress gastric acid secretion, 100 mg hepatoprotective factor once daily to protect the liver, 0.252 mg vitamin B1 once daily to prevent Wernicke’s encephalopathy, and bifid triple bacteria to regulate gastrointestinal flora. After stabilizing the patient’s condition, an emergency ERCP was performed. Prior to ERCP, the patient was successfully anesthetized and placed in a left lateral position and ERCP was performed on the right side by an endoscopist.

During the ERCP, the duodenoscope encountered a rotated gastrointestinal tract, reaching the ampulla of Vater. The ampulla was soft and large with a single-pore opening. Multiple attempts to adjust catheter direction for bile duct cannulation were unsuccessful. The patient was repositioned to a supine position wherein re-endoscopy was performed. The initial attempt at bile duct cannulation resulted in insertion into the pancreatic duct, with a guidewire left in place.

Thereafter, endoscopist used sphincterotomes to carry the guidewire and re-attempt bile duct cannulation. While inserting the catheter with sphincterotomes, which provided axial traction on the pancreatic duct wire. This facilitated separation of the bile and pancreatic ducts, allowing successful bile duct cannulation (Figure 1B). Iohexol contrast revealed an expanded common bile duct with a stone shadow (Figure 1C). A small incision was made in Oddi’s sphincter, and a ball and single-use balloon dilatation catheters were used to dilate the papilla and the lower bile duct segment. Purulent bile flowed out, and a stone basket and single-use stone retrieval balloon were used to remove a yellow-green hard stone into the intestinal lumen (Figure 1D). The bile duct was cleared with a single-use stone retrieval balloon. A subsequent contrast confirmed that the common bile duct was patent.

A nasobiliary drainage catheter was placed into the bile duct without considerable bleeding. The duodenoscope was removed and the nasobiliary drainage catheter was secured at the nasal skin and connected to a closed drainage bag, from which, yellow cloudy bile was drained. The procedure was 45 minutes, and the patient had no significant adverse reactions during the operation. Postoperatively, the patient’s vital signs remained stable.

OUTCOME AND FOLLOW-UP

Postoperative hepatoprotective treatment was performed. After treatment, the patient experienced improvement in liver and kidney functions, after which he was discharged successfully.

DISCUSSION

SIV is a rare congenital anomaly involving mirror-image organ reversal in the chest and abdomen, leading to anatomical deviations[3]. This organ malposition complicates both treatment and diagnostic procedures. In ERCP, the inversion of internal organs alters conventional anatomical orientation, which can significantly impact the execution of ERCP procedures. During ERCP, affecting endoscope insertion into the papilla and subsequent catheterization. Accurate catheterization is particularly difficult in patients with SIV[4]. Reasons for initial the failure to insert the catheter while the patient was in the left lateral position are as follows: (1) The altered anatomy and side-viewing scope design prevent the operator from using standard strategies in patients without SIV during surgery; (2) ERCP in patients with SIV requires rotating the duodenoscope counterclockwise by 90° in the stomach and again in the second part of the duodenum, complicating the procedure and preventing endoscope shortening. Once a ring-shaped structure is formed, the procedure cannot continue; and (3) Failure to shorten the endoscope results in an unstable field of view, making it difficult to adjust and stabilize the position of the ampulla of Vater, hindering catheterization and cholangiography. In summary, SIV’s unique anatomical challenges require specialized techniques and adaptations during ERCP to ensure successful catheterization and imaging.

In patients with SIV with biliary stones, catheterization is the most critical issue during ERCP. Accurate catheterization can be achieved by continuously changing the patient’s position. ERCP techniques and positioning choices for patients and endoscopists vary significantly SIV cases (Table 1 summarizes these reports of ERCP surgery in patients with biliary stone with SIV)[5-10]. Although reports on supine positioning are fewer, they all indicate that this position is safe and effective, with a high success rate for single procedures. In our case, the patient’s position to was changed to supine, with the operator located on the patient’s left side. Unlike traditional prone positioning for patients with normal anatomical structures, the supine position aligns more closely with organ distribution for patients with SIV. This positioning minimizes changes in the operator’s posture and holding mirror posture and enhances bile duct catheterization stability, significantly improving the success rate.

Table 1 Reported cases of endoscopic retrograde cholangiopancreatography in patients with situs inversus viscerum biliary stones.

Ref.	Patient’s position	Endoscopist’s position	Strategy	Successful within a single operation
Venu et al[12], 1985	Right lateral → prone	Right side of the table	Cannulation by repositioning the patient	Yes
Fiocca et al[13], 2008	Prone	Right side of the table	Rotate the endoscope 180° in the stomach and enter the duodenum	Yes
de la Serna-Higuera et al[4], 2010	Prone	Right side of the table	Rotate the endoscope 180° in the stomach and use a rotating sphincterotomy	Yes
García-Fernández et al[5], 2010	Right lateral	Right side of the table	All operations are performed in reverse to normal procedures	Yes
Patel et al[6], 2014	Prone	Right side of the table	The endoscope is rotated 180° within the duodenum	Yes
Hu et al[7], 2015	Supine → prone	Left side of the table	After the endoscope enters the duodenum, change the patient’s position to prone position	Yes
Lee et al[8], 2010	Prone	Right side of the table	First time: The endoscope is rotated 180° counter clock-wise in the stomach. After entering the duodenum, the endoscope is rotated counterclockwise 180° again to shorten	No
			The second time: The endoscope reaches the second part of the duodenum along the lesser curvature of the stomach, while slowly rotating the endoscope clockwise close to the ampulla and cannulation
Rocha et al[9], 2020	Supine	Left side of the table	The duodenal papilla is located in the 1 o’clock direction, and cannulation is performed in the one o’clock direction	Yes
Current study, 2024	Left lateral position → supine	Left side of the table	Bile duct cannulation using a dual guidewire strategy	Yes

However, some issues with using the supine position exist: (1) Gravity makes it difficult to firmly secure the position of the stomach, affecting endoscope stability. Intravenous anaesthesia in our reduced gastrointestinal motility and prevented nausea or vomiting reactions, improving endoscopic manipulation and view stability; and (2) Altered anatomical structures and catheterization angles increase the risk of accidental pancreatic duct insertion. Repeated pancreatic duct insertion can cause injury. Dumonceau et al[11] suggests placing a pancreatic guidewire for selective bile duct catheterization in patients with altered anatomy. If bile duct catheterization fails or the guidewire repeatedly enters the pancreatic duct without resolving the issue, the dual guidewire technique can be used by reserving a pancreatic duct guidewire. If catheterization remains challenging, percutaneous transhepatic ERCP can attempted to establish a biliary passage and guidewire insertion via ERCP guided. In summary, supine positioning is beneficial for patients with SIV undergoing ERCP, requiring meticulous technique and patient assessment to minimize potential complications and maximize the chances of successful catheterization.

Based on this case report, the following recommendations are proposed: (1) With informed consent of the patient, use deep venous anaesthesia should to minimize discomfort and reduce the need for frequent position changes in position, enhancing endoscopic stability; (2) If routing positioning causes catheterization difficulties, promptly adjust the patient’s position to try different catheterization methods; supine position catheterization is a viable and effective option; (3) In cases of difficult or repeated misinsertions into the pancreatic duct during catheterization, consider using the dual-guidewire strategy to improve the success rates; and (4) Complex cases required an experienced endoscopist. If the operator lacks ERCP proficiency or experience and the patient’s condition permits, laparoscopic cholecystectomy for stone removal can also be a feasible alternative. These recommendations aim to improve the safety and efficacy of ERCP in patients with SIV or other complex anatomical conditions. They highlight the importance of patient comfort, operator expertise, and the use of alternative techniques when standard approaches are challenging.

CONCLUSION

In summary, therapeutic ERCP is a safe and effective surgical option for patients with SIV. The main focus in ERCP for patients with SIV is position adjustment during surgery, and the dual-guidewire technique for biliary cannulation can increase the success rate of biliary cannulation.
