Methodology for preventing Botulinum toxin-A eyelid ptosis: Risk index derivation, safety rules, and evidence-graded management algorithm

Abstract

Eyelid ptosis after cosmetic use of Botulinum toxin A, though uncommon, can impair function and patient satisfaction. We aimed to develop a methodological framework that standardizes prevention and management via a derivation-based risk index, explicit safety rules, and an evidence-graded, onset-anchored treatment algorithm. We conducted a structured scoping approach to map existing evidence and anatomical insights, then used consensus-style item generation to derive a practical risk index and codify ten safety rules. Treatments were organized into an onset-anchored algorithm with indicative effect windows and contraindications. The framework introduces a Levator Diffusion Risk Index combining anatomical, technical, and patient factors; a codified ten-rule injection protocol specifying distances, depths, dilution, and needle orientation; and a graded management algorithm for symptomatic ptosis. A standardized, reproducible methodology - risk stratification, measurable technique rules, and a graded treatment pathway - can reduce complication rates and harmonize reporting and care.

Key Words: Botulinum toxin type A; Blepharoptosis; Injection technique; Adverse effects; Methodology; Risk scoring

Core Tip: We propose a methods-first framework to prevent and manage Botulinum toxin A–related eyelid ptosis. Using an evidence-mapped scoping synthesis, we derive the Levator Diffusion Risk Index to stratify diffusion risk, codify ten measurable injection safety rules (distance, plane, volume/dilution, and needle vector), and provide an evidence-graded, symptom-onset–anchored management algorithm with effect windows and contraindications. A minimum reporting checklist is included to standardize outcomes and enable prospective validation.

INTRODUCTION

Eyelid ptosis after cosmetic use of Botulinum toxin A (BoNT-A) is uncommon but clinically and cosmetically significant, arising primarily from unintended levator palpebrae superioris involvement via toxin diffusion[1-3]. Although most cases resolve spontaneously, transient visual disturbance and aesthetic asymmetry undermine satisfaction and may prompt unplanned visits[4,5], management uncertainty, and medicolegal concern[6-9]. Existing guidance offers useful principles, yet recommendations vary in distance from the orbital rim, depth, dilution, and needle orientation[10], and few sources standardize prevention or reporting in a way that is reproducible across settings[11-15].

Recent anatomical and clinical signals clarify diffusion pathways relevant to levator involvement[16,17], but the literature remains heterogeneous in technique descriptions, onset timelines, and outcome measures, limiting comparability and implementation[18-22]. Consequently, clinicians lack a unified, methodologically explicit framework to: (1) Pre-procedure risk-stratify patients; (2) Operationalize injection safety into measurable behaviors; (3) Manage symptomatic cases with an evidence-graded, onset-anchored algorithm; and (4) Report cases consistently to improve future syntheses.

We develop and present a methodological framework for BoNT-A ptosis that integrates a derivation-based Levator Diffusion Risk Index combining anatomic, technical, and patient factors; a ten-rule injection safety protocol with explicit distances, depths, dilution, and needle orientation; an evidence-graded, onset-anchored treatment algorithm; and a minimum reporting checklist intended to harmonize case descriptions and outcomes.

STUDY DESIGN AND REPORTING APPROACH

We conducted a structured scoping approach to map clinical and consensus literature on BoNT-A-related eyelid ptosis and relevant periorbital anatomy, emphasizing comprehensive identification of concepts, techniques, and outcomes rather than quantitative meta-analysis[16-22]. Reporting follows scoping-review conventions aligned with established methodological guidance, adapted to this topic’s heterogeneity in study designs and outcome measures[16-22].

Information sources and search strategy

We queried major biomedical databases over a prespecified window using controlled vocabulary and free-text terms related to botulinum toxin type A, eyelid ptosis/blepharoptosis, injection technique, diffusion, and management. Search strings combined toxin, anatomical region, complication, and management terms, limited to English. Reference lists of included records and key reviews were hand-checked to identify additional sources[16-22].

Eligibility criteria

We included clinical trials, observational studies, case series/reports, systematic or narrative reviews, consensus statements, and anatomical/cadaveric investigations addressing the prevention, mechanism, or management of BoNT-A-induced eyelid ptosis in cosmetic contexts. We excluded non-cosmetic indications, non-human studies without translational relevance, records lacking extractable technique or outcome information, and duplicates. When both preprint and final versions existed, only the final publication was retained[16-22].

Study selection and data charting

Two reviewers independently screened titles and abstracts, followed by full-text evaluation when needed. Disagreements were resolved by discussion and, if necessary, a third reviewer. Data were charted into a structured template capturing study design; population characteristics; injection mapping (sites, depth, needle orientation, distance from orbital rim), dose and dilution; onset and duration of ptosis; management strategies; outcomes; and adverse effects or contraindications[16-22].

Synthesis approach

Given heterogeneity and sparse comparative data, we used descriptive synthesis to: (1) Map technique and anatomical risk signals linked to levator involvement; (2) Summarize time-to-onset and recovery windows; and (3) Catalogue management options with their expected effect windows and limitations. Anatomical and cadaveric insights were integrated to explain plausible diffusion pathways and to anchor technique parameters (distance, depth, volume, and needle orientation)[16-22].

Derivation of the Levator Diffusion Risk Index

Item generation for the Levator Diffusion Risk Index proceeded from convergent signals identified in the synthesis: Anatomical susceptibility (e.g., brow position, septal characteristics, prior eyelid surgery, subtle levator asymmetry), technique factors (e.g., proximity to the orbital rim, depth relative to corrugator portions, per-point volume, and needle orientation), and patient modifiers (e.g., immediate post-procedure behavior, neuromuscular comorbidity). Candidate items were retained when supported by at least one anatomical/cadaveric rationale and recurrent clinical association. Weights were assigned qualitatively to reflect estimated contribution to levator exposure based on strength and consistency of the underlying evidence, with higher weights given to proximity to the orbital rim and improper plane/orientation. The resulting index was organized into low, moderate, and high-risk bands to guide dose adjustment, point selection, and aftercare intensity. All steps were completed before drafting the results to minimize hindsight bias[16-22].

Development of the safety ruleset

The ten safety rules were distilled from technique elements that have an explicit anatomical justification relative to levator and septal relationships and are feasible to standardize in routine practice (e.g., measurable distances from the orbital rim, explicit planes at medial vs lateral corrugator, per-point volume ceilings, and mandated needle orientation away from the orbit). Conflicting recommendations across sources were reconciled by prioritizing rules that both reduce theoretical diffusion risk and retain clinical efficacy in the glabellar-forehead complex. Rule wording was iterated to ensure each instruction is observable and auditable in practice[10-19].

Evidence grading and algorithm construction

Management options were organized by expected onset of benefit and mechanism. We summarized commonly used pharmacologic interventions and selective procedural strategies, then aligned them along an onset-anchored pathway that begins with reassurance and monitoring and escalates according to symptom burden and functional impact. Where the literature permitted, we indicated the typical effect window and key contraindications. In the presence of heterogeneous study designs and limited comparative data, evidence statements were framed cautiously and referenced to their primary sources[16-22].

Prospective validation plan (methods overview)

Because derivation occurred within a scoping methodology, we outline - without implementing - an approach for validating the Levator Diffusion Risk Index and safety rules in prospective practice. This includes standardized pre-injection scoring; documentation of injection maps with distances, planes, and volumes; predefined outcomes such as margin reflex distance 1 (change in mm from baseline) and time to resolution; and inter-rater reliability for Levator Diffusion Risk Index scoring. Such a protocol is intended for future work and is included here to support reproducibility and uptake[16-22].

Ethics and disclosures

This work synthesizes published literature and does not involve human participants or identifiable data; ethics approval was not required. Any language polishing tools were limited to editorial clarity and did not contribute to study conception, data extraction, analysis, or conclusions.

EVIDENCE SYNTHESIS

The scoping synthesis identified heterogeneous clinical and consensus sources describing the mechanism, risk factors, and management of BoNT-A-related eyelid ptosis, alongside anatomical and cadaveric investigations clarifying diffusion pathways relevant to levator involvement. Technique descriptions varied widely in distance from the orbital rim, depth and plane at medial vs lateral corrugator, per-point volumes, dilutions, and needle orientation, while outcome reporting ranged from qualitative impressions to quantitative eyelid measurements. Across reports, ptosis typically arose after glabellar and adjacent forehead treatments, with onset clustering within the first two weeks and spontaneous resolution over several weeks in most cases[10-22].

Evidence signals consistently associated increased risk with injection points placed too close to the orbital rim, deep placement at sites where a superficial plane is preferred, higher per-point volumes, and needle orientation directed toward the orbit. Anatomical and simulation data supported plausible routes of diffusion across tissue planes toward the levator, offering a mechanistic rationale for technique modifications that redirect vectors away from the orbit and reduce local toxin load near septal transitions[10-15]. Management reports and reviews described symptomatic interventions with variable effect windows, most frequently alpha-adrenergic agonists for transient elevation, alongside selective procedural strategies in refractory or function-limiting cases; consistent counseling regarding the usual time course toward recovery was emphasized[16-22].

On this foundation, we developed original, practice-oriented contributions. First, the Levator Diffusion Risk Index was derived by integrating convergent signals from the evidence map and anatomic rationale into a practical scoring construct combining anatomic susceptibility, technique features, and patient behavior or comorbidity. Items reflecting proximity to the orbital rim and plane/orientation errors received proportionally greater weight given their stronger mechanistic and clinical support; the resulting score was organized into low, moderate, and high-risk bands intended to guide pre-procedure decisions regarding dose, point selection, mapping more superiorly or laterally, and the intensity of post-procedure instructions[10-22]. Second, we codified a ten-rule injection protocol that translates diffusion-relevant anatomy into measurable technique behaviors: Maintaining a minimum vertical distance above the orbital rim for glabellar points, using superficial placement laterally and deeper placement medially where appropriate, limiting per-point volumes with standardized dilution, orienting the needle consistently away from the orbit, and employing adjunctive maneuvers such as firm support over the rim to counter inadvertent flow. Each rule is framed for observability and auditability to support implementation and training in routine practice[10-19].

Third, we organized management into an evidence-graded, onset-anchored algorithm that begins with reassurance and monitoring given the typical course, then aligns pharmacologic choices with expected effect windows, contraindications, and functional need. Early symptomatic cases were structured around short-acting elevating agents, with escalation to selective procedural strategies in refractory situations and with appropriate expertise, while documentation of eyelid measurements and recovery timeline was emphasized to standardize follow-up and reporting[16-22]. Finally, to improve comparability across future studies and case reports, we assembled a minimum reporting checklist that includes pre-injection risk documentation, precise injection mapping with distances, planes, volumes, and orientation, objective eyelid measurements over time, interventions used with dosing details, adverse effects, and time to recovery; its intent is to harmonize data elements so subsequent syntheses can more reliably estimate effect sizes and refine prevention and management practices[16-22].

Collectively, these results recast disparate guidance into a coherent, reproducible methodology: A risk index that operationalizes pre-procedure assessment, a ruleset that translates anatomy into concrete technique standards, an onset-anchored treatment pathway calibrated to patient experience, and a reporting checklist that underpins future validation and iterative improvement[10-22].

ORIGINAL CONTRIBUTIONS

The Levator Diffusion Risk Index was constructed to translate convergent anatomical and clinical signals into a practical pre-procedure appraisal that anticipates levator exposure. The index integrates three domains: Anatomical susceptibility, technique configuration, and patient modifiers. Anatomical susceptibility captures features that plausibly reduce protective barriers or indicate latent eyelid imbalance, such as low brow position, dermatochalasis, prior eyelid surgery that may alter septal integrity, and subtle asymmetry in levator function. Technique configuration encodes elements repeatedly implicated in diffusion toward the levator, including proximity of glabellar injection points to the orbital rim, inappropriate depth at medial vs lateral corrugator portions, per-point volume and dilution that increase local spread, and needle orientation that directs flow toward the orbit rather than away from it. Patient modifiers encompass behaviors in the immediate post-injection period and relevant comorbidities that could potentiate effect or increase susceptibility. Items were retained when supported by anatomical rationale and recurring clinical association, and the composite score was segmented into low, moderate, and high-risk bands to guide the intensity of dose adjustments, point selection, superior or lateral remapping, and post-procedure instructions[10-22]. A visual summary of the domains and qualitative item weighting is provided in Figure 1.

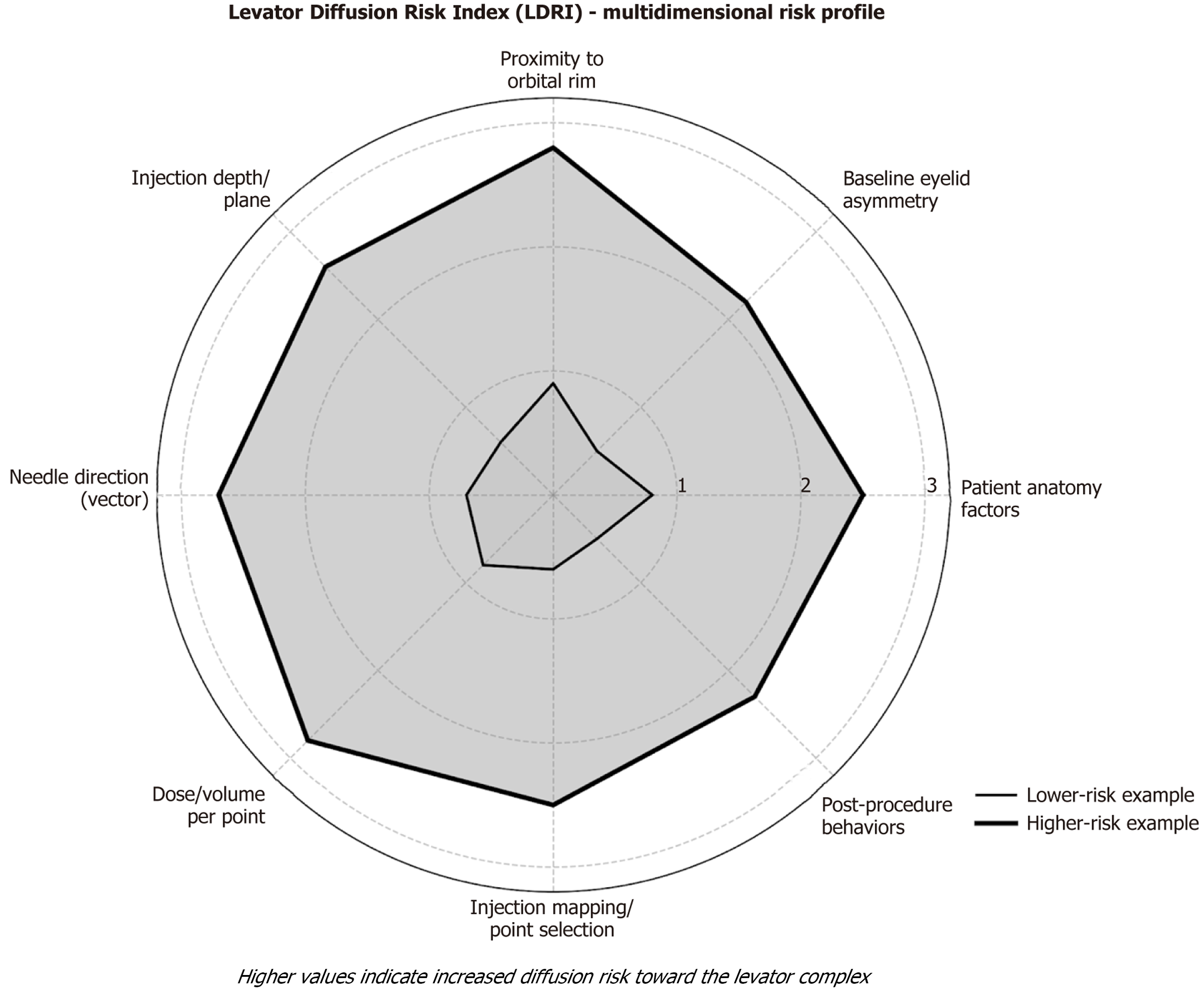

Figure 1 Levator Diffusion Risk Index radar chart. Radar chart of Levator Diffusion Risk Index domains; overlaid examples show lower vs higher diffusion-risk profiles. Each axis is scored on an ordinal 1-3 scale; higher values indicate increased diffusion risk toward the levator complex. LDRI: Levator Diffusion Risk Index.

The safety ruleset was framed to make prevention observable, teachable, and auditable in routine practice. Each rule is anchored to anatomical relationships that define safe corridors above the orbital rim and distinguish planes at the medial and lateral corrugator. In operational terms, glabellar points are maintained at a minimum vertical distance above the rim to decrease the likelihood of septal transgression; planes are selected to remain superficial laterally where the muscle thins and deeper medially where targeted contraction requires intramuscular placement; per-point volumes are capped within a standardized dilution to reduce local hydrostatic drive; and needle orientation is deliberately biased away from the orbit so the injection vector does not favor diffusion toward the levator. Adjunctive maneuvers, such as firm support at the rim during corrugator treatment, are employed to counter inadvertent spread during injection. The ruleset is expressed as clear, measurable behaviors to permit consistent training, competency assessment, and quality improvement, while recognizing that individualized mapping is still necessary across varying brow positions and frontalis dynamics[10-19]. The full ruleset is summarized in Table 1 and illustrated schematically in Figure 2; common technical errors and corrected techniques are contrasted in Figure 3.

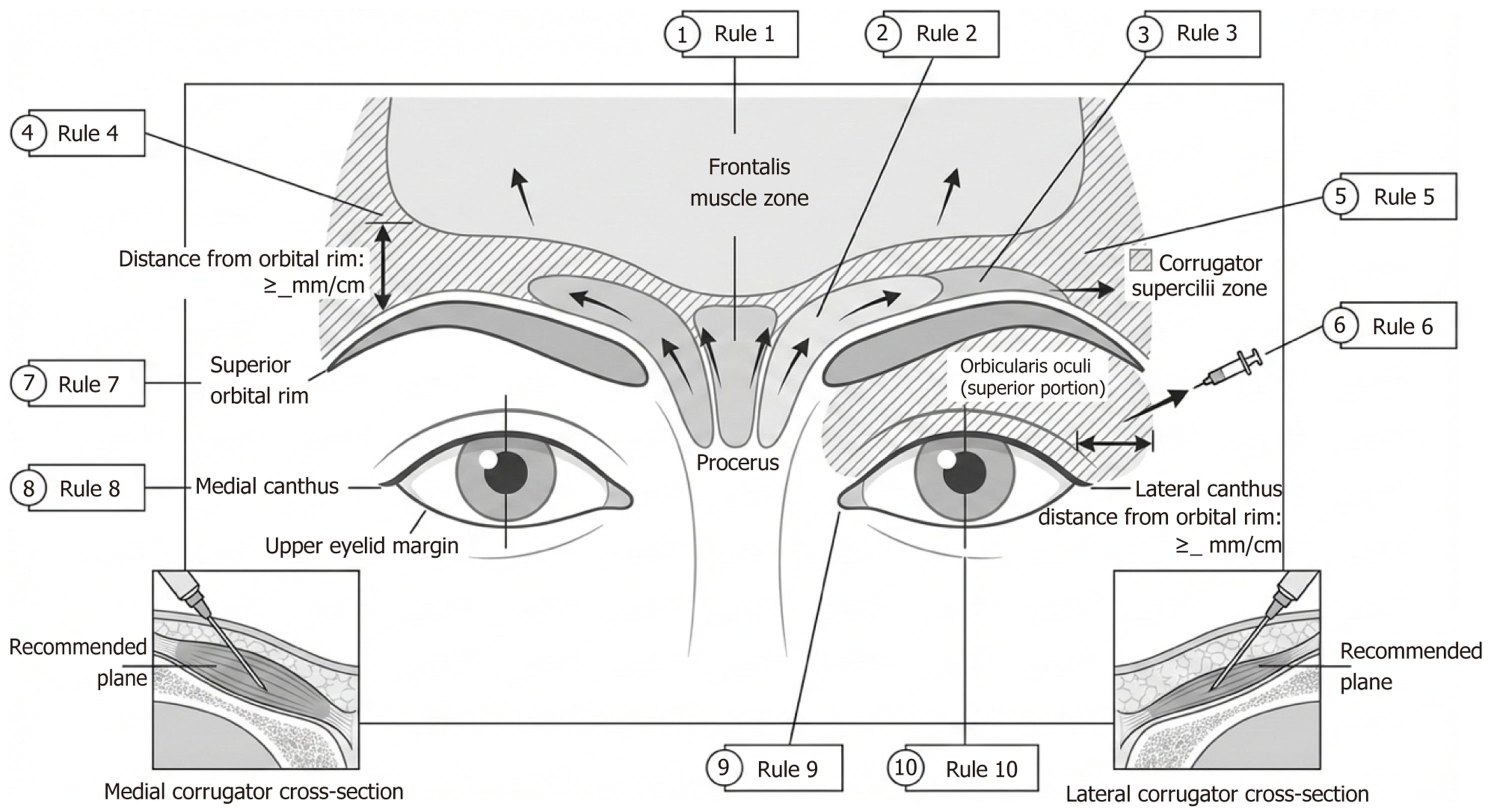

Figure 2 Anatomical schematic of injection safety rules. Upper-face schematic highlighting the orbital rim boundary, safe zones, needle vectors, and plane guidance; callouts correspond to Box 1.

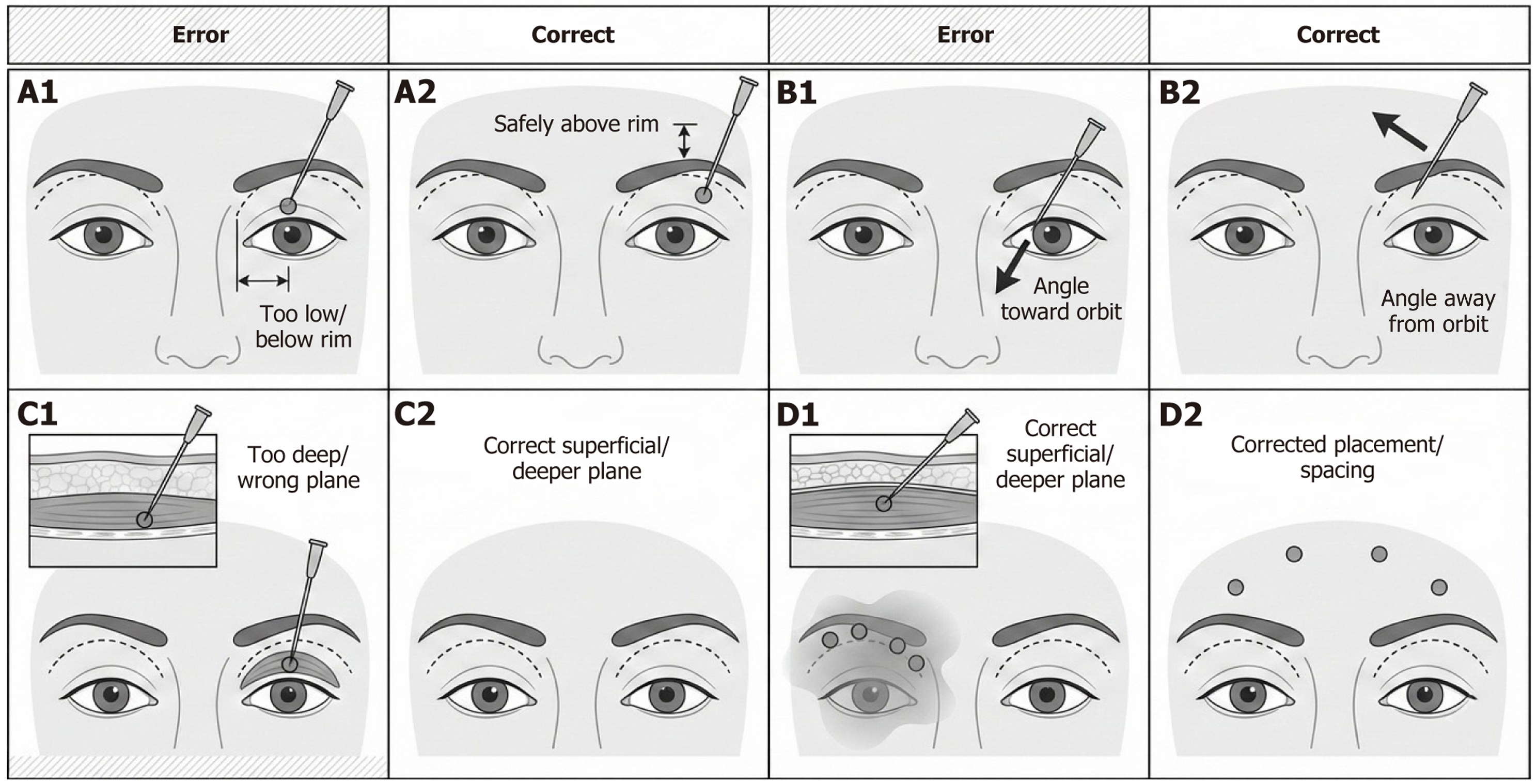

Figure 3 Errors vs corrected injection technique. Paired schematics contrasting a common technical error (left column, A1, B1, C1, D1) with the corresponding corrected technique (right column, A2, B2, C2, D2) to reduce toxin diffusion toward the levator complex. A1: Injection point placed too close to the orbital rim; A2: Injection point kept superior to the orbital-rim buffer; B1: Needle vector directed toward the orbit; B2: Needle vector directed away from the orbit; C1: Deep placement at the lateral corrugator; C2: Superficial placement at the lateral corrugator; D1: Large per-point volume with clustered points near the rim; D2: Small per-point volumes with adequately spaced points.

Table 1 Botulinum toxin A: Ten practical rules to reduce Botulinum toxin A diffusion toward the levator complex through safe landmarking, point selection, depth/vector control, conservative delivery, and post-injection precautions.

Rule	Safety rules
1	Baseline assessment and documentation: Record eyelid/brow position at rest and with animation; document margin reflex distance 1, asymmetry, and frontalis compensation (photo if possible)
2	Mark bony landmarks: Palpate/mark the superior orbital rim and brow to create a clear “orbital safety boundary” before injecting
3	Respect an orbital-rim buffer: Keep all glabellar/brow points superior to a predefined safety margin above the orbital rim
4	Keep frontalis injections high (especially laterally): Avoid low frontalis points near the brow; tailor placement to brow position and baseline frontalis recruitment
5	Medial corrugator: Controlled deep placement at safe origin: Use a stabilizing technique (e.g., pinch/Lift) and place toxin in the intended deep plane at the medial corrugator origin - avoid low/inferior drift
6	Lateral corrugator: Stay more superficial and superior: Avoid deep lateral placement that increases diffusion risk toward the levator complex and septal planes
7	Needle vector away from the orbit: Orient the needle/force superiorly and away from the orbital cavity; avoid directing the tip toward the orbit
8	Minimize diffusion drivers (dose/volume/pressure): Use the lowest effective dose, small per-point volumes, slow injection, and low pressure; avoid large boluses and unnecessary re-injection in the same session
9	Avoid clustering near high-risk zones: Maintain deliberate spacing; avoid multiple closely placed points in the superomedial orbital region and other areas near the orbital boundary
10	Post-procedure diffusion precautions: Avoid rubbing/massage and sustained pressure/heat/exertion on the treated region; remain upright in the immediate post-injection period (per protocol); report ptosis/diplopia promptly

Management was organized into an evidence-graded, onset-anchored pathway that begins with counseling regarding the expected natural history and then aligns interventions with symptom timing and functional need. Early presentations that meaningfully reduce palpebral fissure height or impair function are offered symptomatic pharmacologic options selected for their rapid onset and transient effect profile, while patients with mild cosmetic disturbance without functional compromise are reassured and monitored with clear expectations for recovery. When symptoms persist or functional demands are high, escalation is considered using additional pharmacologic agents with attention to contraindications, and in selected refractory cases, procedural strategies are applied in settings with appropriate expertise. Throughout this sequence, the pathway emphasizes documentation of eyelid measurements, photographic follow-up, and adverse effects to support shared decision-making and to generate consistent data for future synthesis[16-22]. A decision tree version of this pathway is provided in Figure 4.

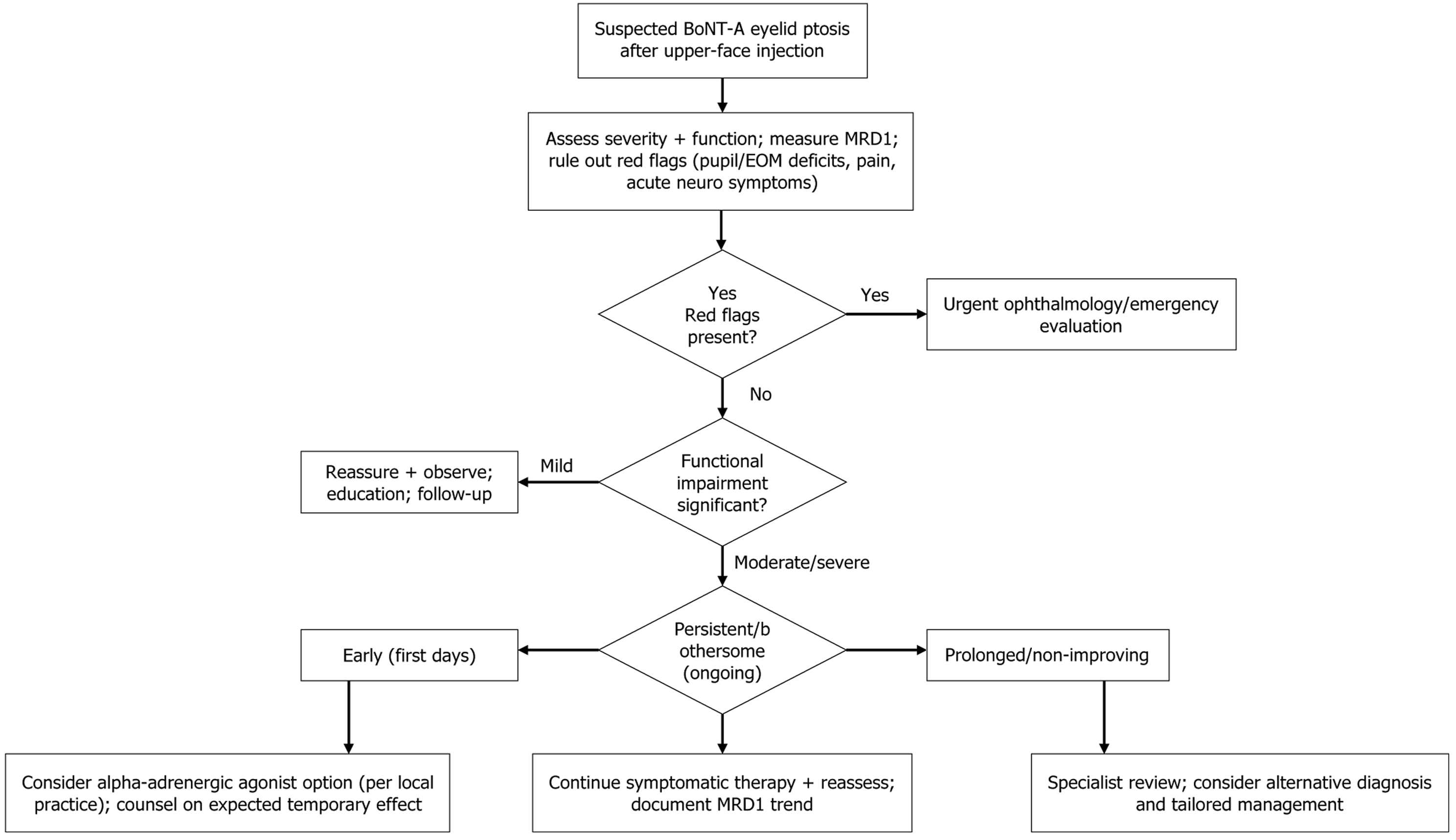

Figure 4 Symptom-onset-anchored management algorithm. Decision tree for Botulinum toxin A eyelid ptosis based on red-flag screening, functional impact, and time since onset, with stepwise escalation and evidence-grade tags. BoNT-A: Botulinum toxin A; MRD: Margin reflex distance; EOM: Extraocular muscles.

To support reproducibility and improve comparability across reports, a minimum reporting checklist was assembled to standardize data elements before, during, and after treatment. Pre-procedure elements include documentation of risk index components and baseline eyelid measurements; intra-procedure elements include a precise injection map with distances from the orbital rim, planes at each point, needle orientation, per-point units and dilution, and any adjunctive maneuvers; and post-procedure elements include day of onset, maximal change in eyelid aperture, interventions with dosing and frequency, adverse effects, and time to resolution. The purpose of this checklist is to harmonize case description and outcomes so that prospective validation of the risk index and refinement of the ruleset and management pathway can proceed on a common evidentiary foundation[16-22].

DISCUSSION

This methods-first framework addresses three persistent limitations in prior guidance on BoNT-A-related eyelid ptosis: Variability in technique recommendations, fragmented reporting, and the absence of a reproducible way to anticipate levator exposure. Earlier sources describe useful principles but differ in recommended distances from the orbital rim, depth and plane at medial vs lateral corrugator, acceptable per-point volumes, dilution practices, and needle orientation, with inconsistent outcome definitions and timelines that hinder synthesis and implementation[10-15]. Anatomical and cadaveric work has clarified diffusion pathways toward the levator, yet these insights have not been consistently translated into operational rules or risk-indexed decision making in routine practice[10-22]. By deriving a structured risk index, codifying ten measurable safety rules, and organizing management into an onset-anchored algorithm, the present work converts disparate signals into methodologically explicit standards that can be taught, audited, and iteratively improved[16-22].

Practical implications

The Levator Diffusion Risk Index offers a pre-procedure lens that ties patient anatomy, prior eyelid surgery, and subtle levator asymmetry to technique configuration, including point placement relative to the orbital rim, plane selection at corrugator segments, per-point volume, dilution, and needle orientation. In clinical terms, low scores support standard mapping with routine aftercare, whereas moderate and high scores trigger dose reduction, superior or lateral remapping, removal of the riskiest points, and stricter post-procedure precautions. The safety ruleset complements this by translating anatomy into observable behaviors - maintaining a minimum vertical distance above the rim, remaining superficial laterally and deeper medially where indicated, capping per-point volumes within a standardized dilution, orienting needles away from the orbit, and stabilizing the rim - to reduce vectors that plausibly favor levator exposure[10-19]. The management pathway then aligns options with expected effect windows and functional need, beginning with counseling about the typical course and escalating pharmacologic or procedural steps when symptoms meaningfully impair function, while emphasizing consistent documentation for follow-up and learning[16-22].

Implementation and quality improvement

Because the rules are expressed as measurable actions, they lend themselves to checklist integration, competency assessment, and chart audit. Clinics can embed the risk index into pre-injection templates, require explicit notation of distances and planes at the time of mapping, and standardize dilution and per-point volumes to reduce variability. Coupled with photographic documentation and eyelid measurements at defined intervals, these steps create feedback loops that surface preventable patterns and enable targeted coaching. Over time, aggregated data from routine use can refine item weights within the index and test whether particular rules most strongly predict event reduction[16-22].

Limitations

The synthesis draws on heterogeneous studies, consensus statements, and anatomical investigations with variable granularity in technique and outcome reporting. Comparative evidence is limited, effect size estimates are imprecise, and confounding by injector experience and patient selection is likely. The risk index and ruleset are derived rather than validated, and weights reflect qualitative judgments informed by convergent signals rather than prospective modeling. Management recommendations prioritize plausibility, safety, and reported experience; definitive head-to-head trials are scarce[16-22]. These limitations argue for cautious application alongside clinical judgment and for prospective evaluation.

Validation agenda

We outline a pragmatic pathway to test and refine the framework: (1) Prospective registry implementation of the risk index with pre-specified outcomes such as margin reflex distance 1 change, onset day, and time to resolution; (2) Inter-rater reliability studies of risk scoring and mapping parameters; (3) Stepped implementation of the ruleset with interrupted time-series analysis of ptosis incidence; and (4) Comparative evaluation of management sequences stratified by onset and baseline fissure change. Standardized reporting elements are essential to enable pooling and to support calibration of item weights and thresholds over time[16-22].

In sum, this methodology consolidates anatomical rationale and clinical signals into a reproducible approach that standardizes prevention, structures management, and harmonizes reporting. Its value will ultimately rest on prospective validation and the degree to which routine adoption measurably reduces event rates, shortens recovery, and improves patient experience[10-22].

CONCLUSION

This methodology integrates anatomical rationale and clinical signals into a reproducible approach that standardizes prevention, organizes management, and harmonizes reporting for BoNT-A-related eyelid ptosis. By pairing a derivation-based risk index with measurable technique rules and an evidence-graded, onset-anchored treatment pathway, the framework converts heterogeneous guidance into operational standards suitable for training, audit, and quality improvement. Its ultimate value depends on prospective validation, including reliability of risk scoring, adherence to the ruleset in routine practice, and demonstrable reductions in event rates and recovery time, supported by consistent data capture using the proposed reporting elements.
