Islet dimension and its impact on transplant outcome: A systematic review

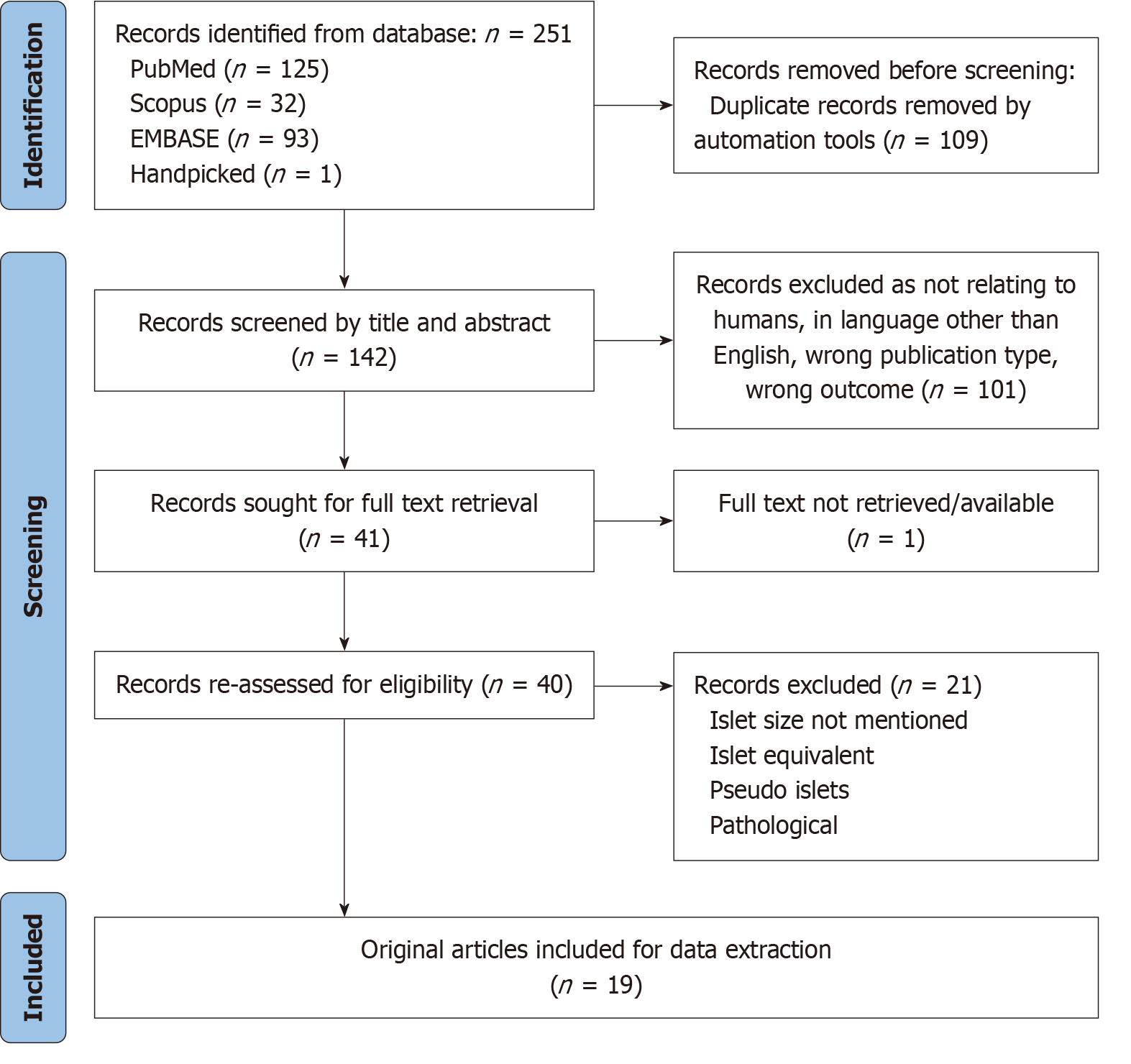

Figure 1  Preferred Reporting Items for Systematic Reviews and Meta-Analyses (2020) flow diagram of studies identified, screened, excluded and included in the review.

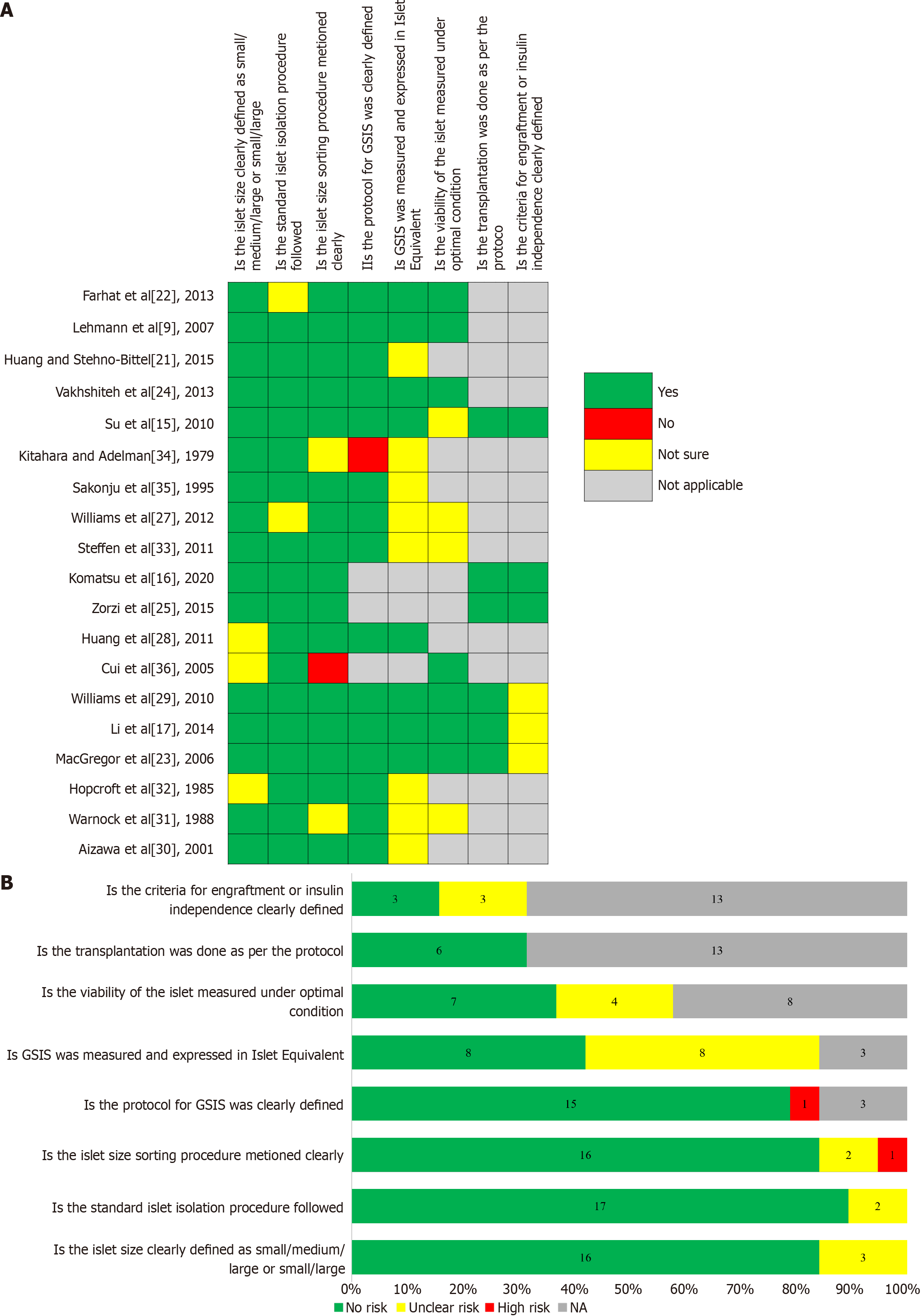

Figure 2 Appraisal Tool for Cross-Sectional Studies. A: Risk of bias assessment of the included studies; B: Summary of risk of bias assessments. GSIS: Glucose-stimulated insulin-secreting.

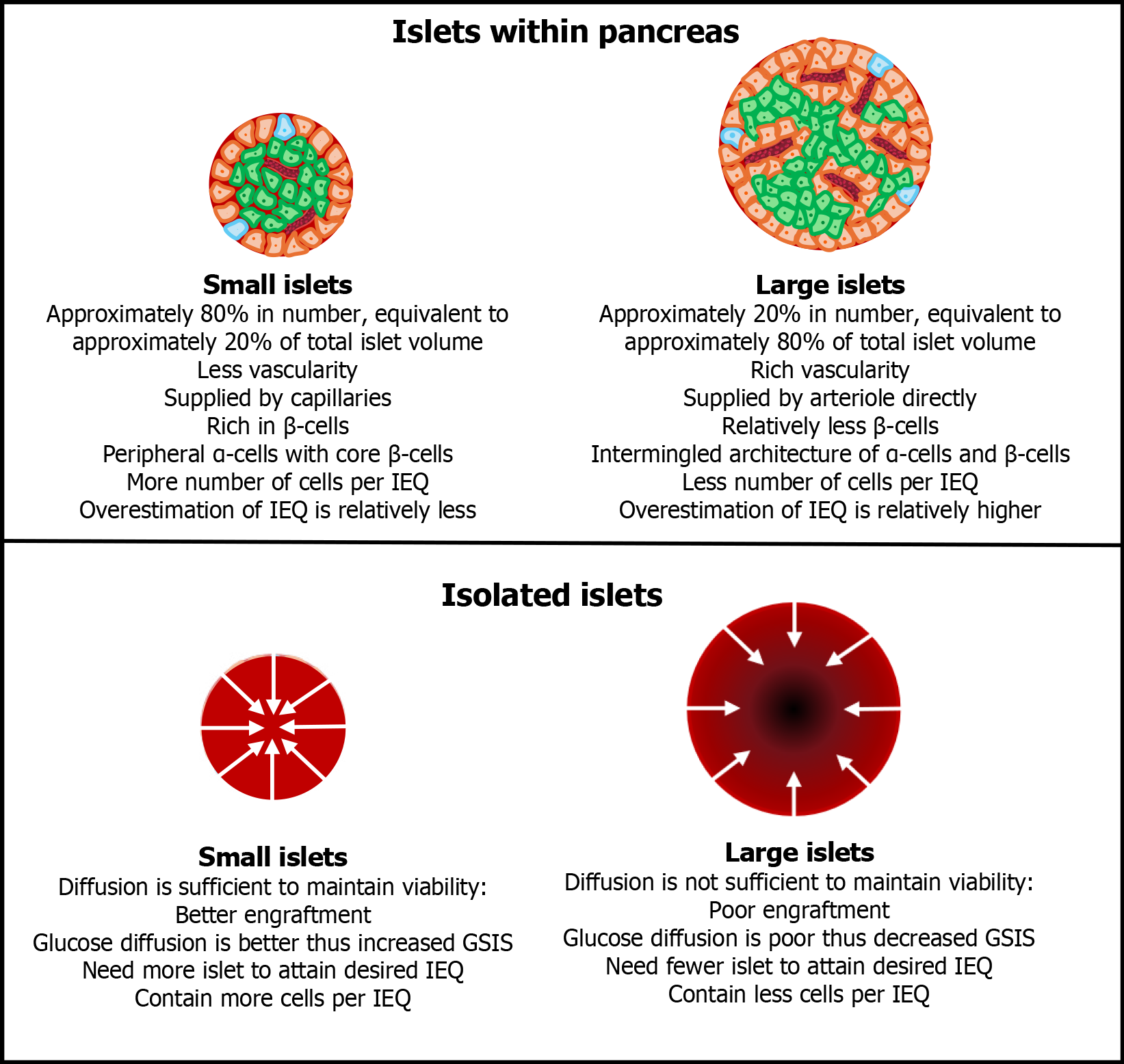

Figure 3 Characteristic differences in small and large islets play a significant role in their survival, function and transplant outcome. GSIS: Glucose-stimulated insulin-secreting; IEQ: Islet equivalent.

Figure 4 Isolated human islets at various stages of assessment before transplantation. A: Unstained isolated human islets of different sizes (S: Small-sized islet; L: Large-sized islet); B: Dithizone (Diphenylthiocarbazone)-stained human islets, freshly isolated, showing the purity of the preparation; C: Unstained normal human islet under higher magnification; D: Unstained human islet with central necrosis after culture for 5 days, viewed under higher magnification; E: Haematoxylin and Eosin-stained image of large-sized islet in native pancreas with multiple intra-islet capillaries (black arrowhead) (higher magnification); F: Fluorescein diacetate/propidium iodide staining to assess the viability of the isolated islets (Bright green fluorescence indicates live cells, while bright red or orange fluorescence indicates dead or necrotic cells).

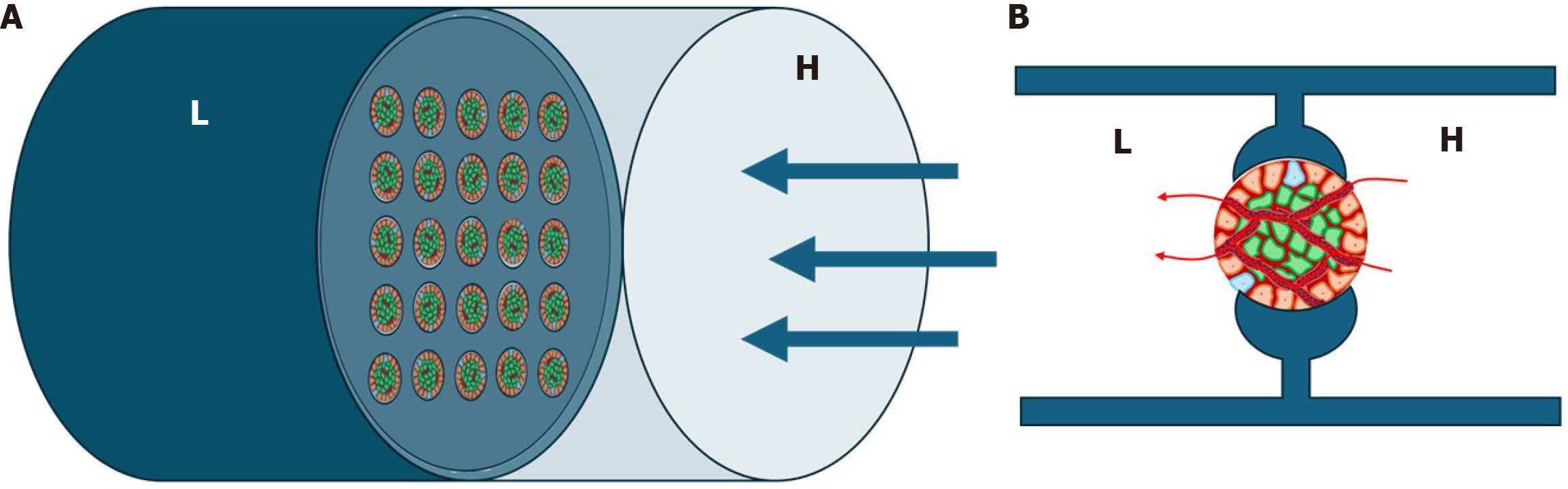

Figure 5 Strategies to maintain the viability of large islet. A: Creating the pressure difference across the islet might increase the blood flow in the capillaries present in the isolated islets, keeping it viable and accelerating the vascularisation; B: Magnified view showing single islet and direction of the flow. Arrow shows the direction of the blood flow. H: High pressure; L: Low pressure.
