Duchenne muscular dystrophy coexisting with Down syndrome or Turner syndrome: Two case reports

Figure 1 Histopathological and immunohistochemical findings from quadriceps muscle biopsies confirming dystrophinopathy. A-D: A 6-year-old boy with Duchenne muscular dystrophy (DMD) and Down syndrome (Case 1); E-H: A 6-year-old girl with DMD and mosaic Turner syndrome (Case 2). A: Hematoxylin and eosin (H&E) staining demonstrating myopathic changes, including mild-to-moderate fiber size variation, scattered necrotic and regenerating fibers with clustered regeneration, and mild-to-moderate endomysial fibrosis with adipose tissue infiltration; B: Diffuse utrophin positivity, indicating compensatory upregulation secondary to dystrophin deficiency; C: Absent dystrophin C-terminal (Dys-2) staining in most fibers; D: Faint dystrophin rod domain (Dys-1) staining; E: H&E staining demonstrating dystrophic changes similar to Case 1; F: Biphasic utrophin staining pattern consistent with mosaic dystrophin expression; G: Biphasic Dys-2 staining: Fibers with weak utrophin staining demonstrate dystrophin positivity, whereas fibers with strong utrophin staining are dystrophin-negative; H: Biphasic Dys-1 staining showing a reciprocal pattern to utrophin expression, reflecting mosaic X-chromosome inactivation. Original magnification × 200; scale bar = 20 μm.

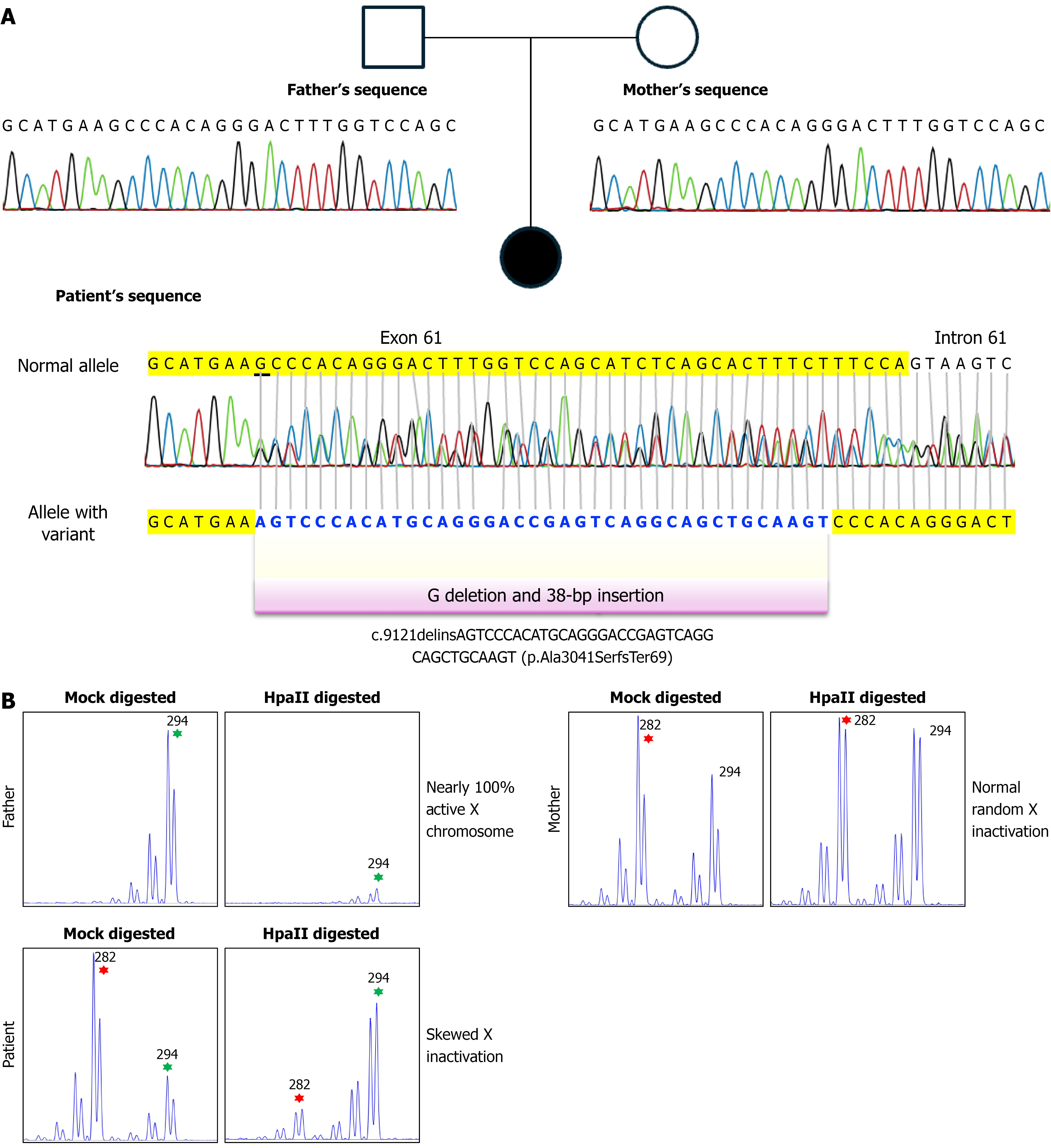

Figure 2 Molecular characterization of Case 2 Sanger sequencing confirmation of the dystrophin gene variant and X-chromosome inactivation analysis demonstrating extreme skewing. A: Sanger sequencing of dystrophin gene exon 61. The patient’s sequence (bottom) compared with the reference sequence (top) reveals a complex deletion-insertion (delins) variant, c.9121delinsAGTCCCACATGCAGGGACCGAGTCAGGCAGCTGCAAGT. This variant involves deletion of a single guanine nucleotide at position c.9121 with concomitant insertion of a 38-bp fragment (blue sequence). The resulting frameshift is predicted to generate a premature termination codon, p.Ala3041Serfs*69. Parental testing confirmed de novo occurrence; B: X-chromosome inactivation (XCI) analysis using the androgen receptor (AR) gene methylation assay. Capillary electrophoresis profiles show HpaII-digested (methylation-sensitive; right panels) and mock-digested (left panels) DNA samples from family members. Father: Single allele (294 bp) with nearly 100% active X chromosome, as expected for a male. Mother: Balanced representation of both alleles (282 bp and 294 bp) in HpaII-digested samples, indicating normal random X-inactivation. Patient: Extremely skewed XCI (92.53%), with preferential inactivation of the paternal X chromosome. This is evidenced by predominant amplification of the 294-bp paternal allele (green star) and minimal amplification of the 282-bp maternal allele (red star) in HpaII-digested samples. The AR gene methylation assay exploits the polymorphic CAG repeat in exon 1 of the androgen receptor gene. HpaII cleaves unmethylated CpG sites on the active X chromosome, leaving methylated (inactive X) DNA intact for PCR amplification.
