Evaluation of heart rate variability in pediatric patients with beta thalassemia major: Cross-sectional study

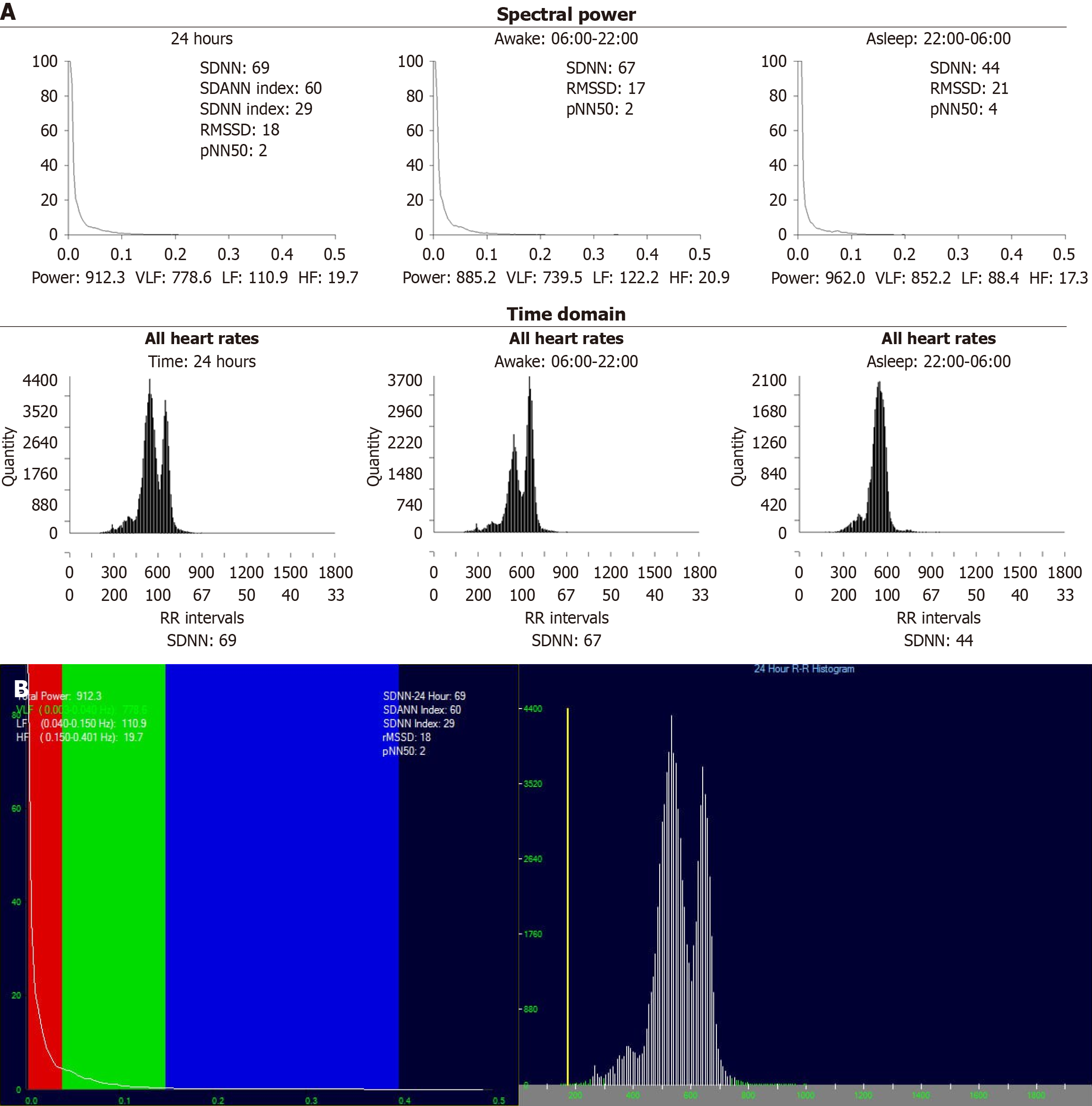

Figure 1 Heart rate variability analysis in a thalassemia patient. A: Spectral and time-domain plots of heart rate variability (HRV) in an 8-year-old child with β-thalassemia major over 24 hours, showing both awake (06:00-22:00) and sleep (22:00-06:00) phases. The patient demonstrates a marked reduction in overall HRV with decreased root mean square of successive normal-to-normal interval differences (parasympathetic activity), percentage of successive normal-to-normal intervals differing by more than 50 ms (short-term variation) and high-frequency (HF) power, reflecting diminished parasympathetic activity; B: Corresponding 24-hour HRV spectral power distribution and RR interval histogram from the same patient shows significantly low total power (912.3 ms²) with a blunted HF (19.7) component. This pattern is consistent with significant autonomic imbalance and reduced parasympathetic modulation. VLF: Very low frequency; LF: Low frequency; HF: High frequency; SDNN: Standard deviation of all normal-to-normal intervals; SDANN: Standard deviation of the 5-minutes average normal-to-normal intervals; RMSSD: Root mean square of successive differences; pNN50: Percentage of successive normal-to-normal intervals differing by > 50 ms.

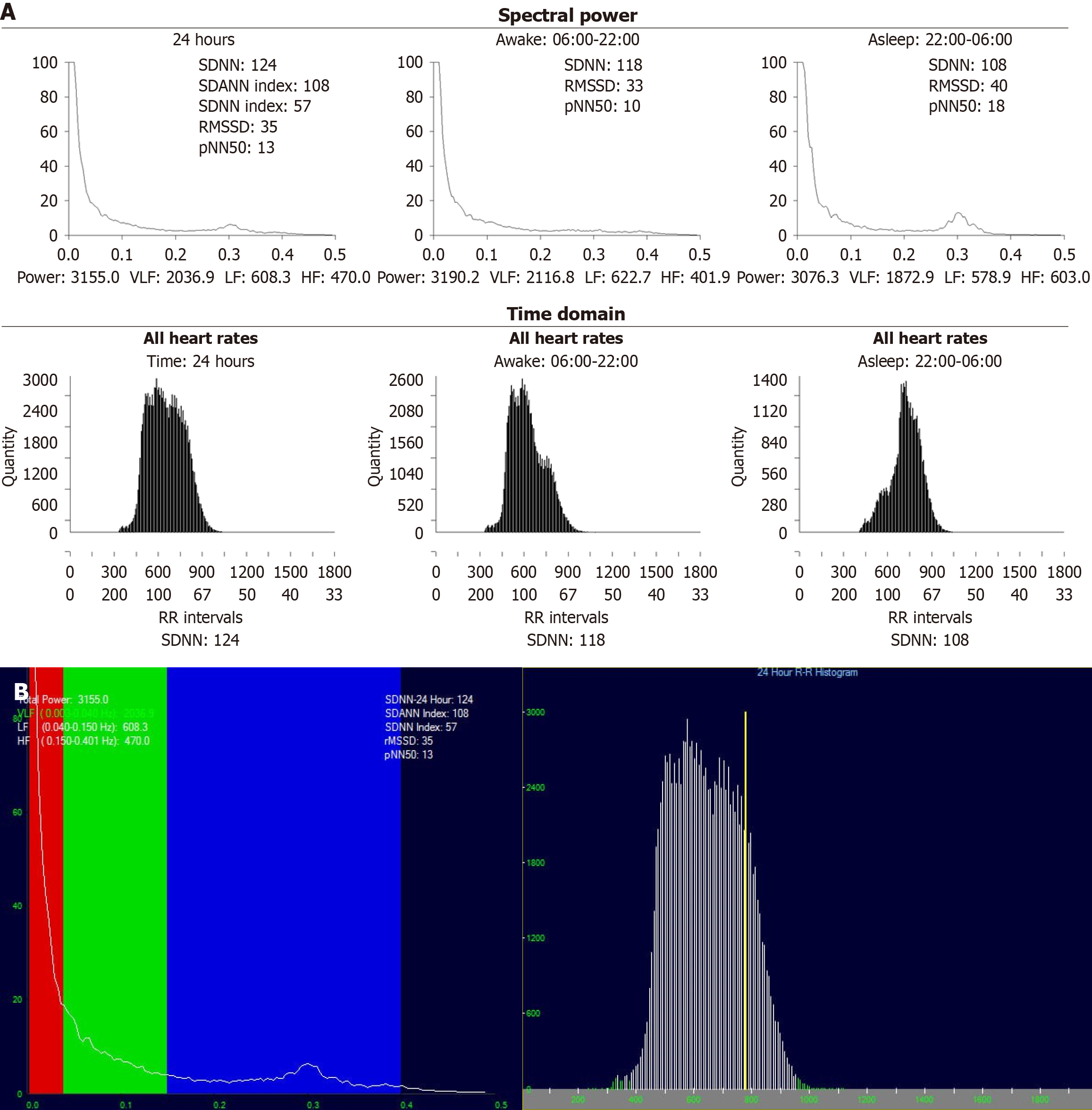

Figure 2 Heart rate variability analysis in a healthy control. A: Spectral and time-domain plots of heart rate variability (HRV) in a 7-year-old healthy control child over 24 hours, including awake and sleep phases. HRV parameters are within normal limits for age [e.g., standard deviation of all normal-to-normal intervals (SDNN): 124, root mean square of successive differences: 57], with clear circadian variation (e.g., SDNN 118 awake vs 108 asleep), showing balanced sympathetic and parasympathetic modulation with appropriate circadian variation; B: Corresponding 24-hour HRV spectral power distribution and RR interval histogram from the same child, demonstrating high total power (3155.0 ms²) with balanced low-frequency (608.3) and high-frequency (470.0) components, consistent with intact autonomic regulation. VLF: Very low frequency; LF: Low frequency; HF: High frequency; SDNN: Standard deviation of all normal-to-normal intervals; SDANN: Standard deviation of the 5-minutes average normal-to-normal intervals; RMSSD: Root mean square of successive differences; pNN50: Percentage of successive normal-to-normal intervals differing by > 50 ms.
