Extended venous excess ultrasound: A promising addition to point-of-care ultrasound-based venous congestion assessment

Figure 1 Venous excess ultrasound grading system. VExUS: Venous excess ultrasound; IVC: Inferior vena cava; S: Systolic wave; D: Diastolic wave. Figure reused with permission from NephroPOCUS.com. Available from: https://nephropocus.com/2021/10/05/vexus-flash-cards/.

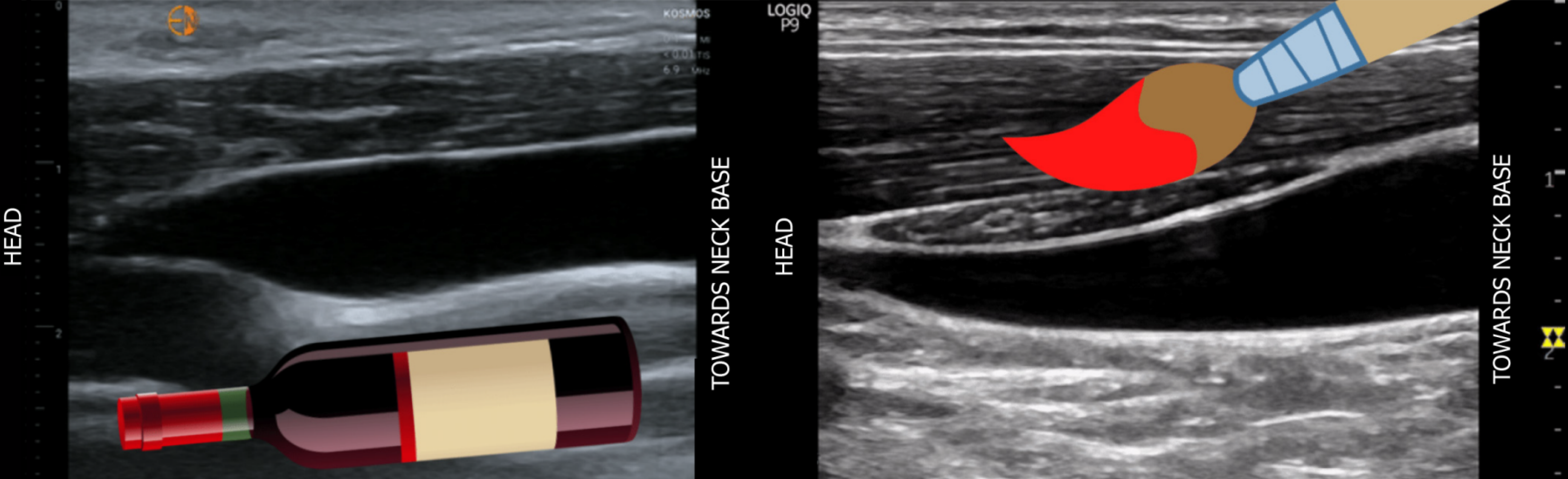

Figure 2 Long-axis ultrasound of the internal jugular vein demonstrating the collapse or taper point, often compared to a wine bottle or paintbrush. Image reused with permission from NephroPOCUS.com. Available from: https://nephropocus.com/interesting-signs-and-metaphors/.

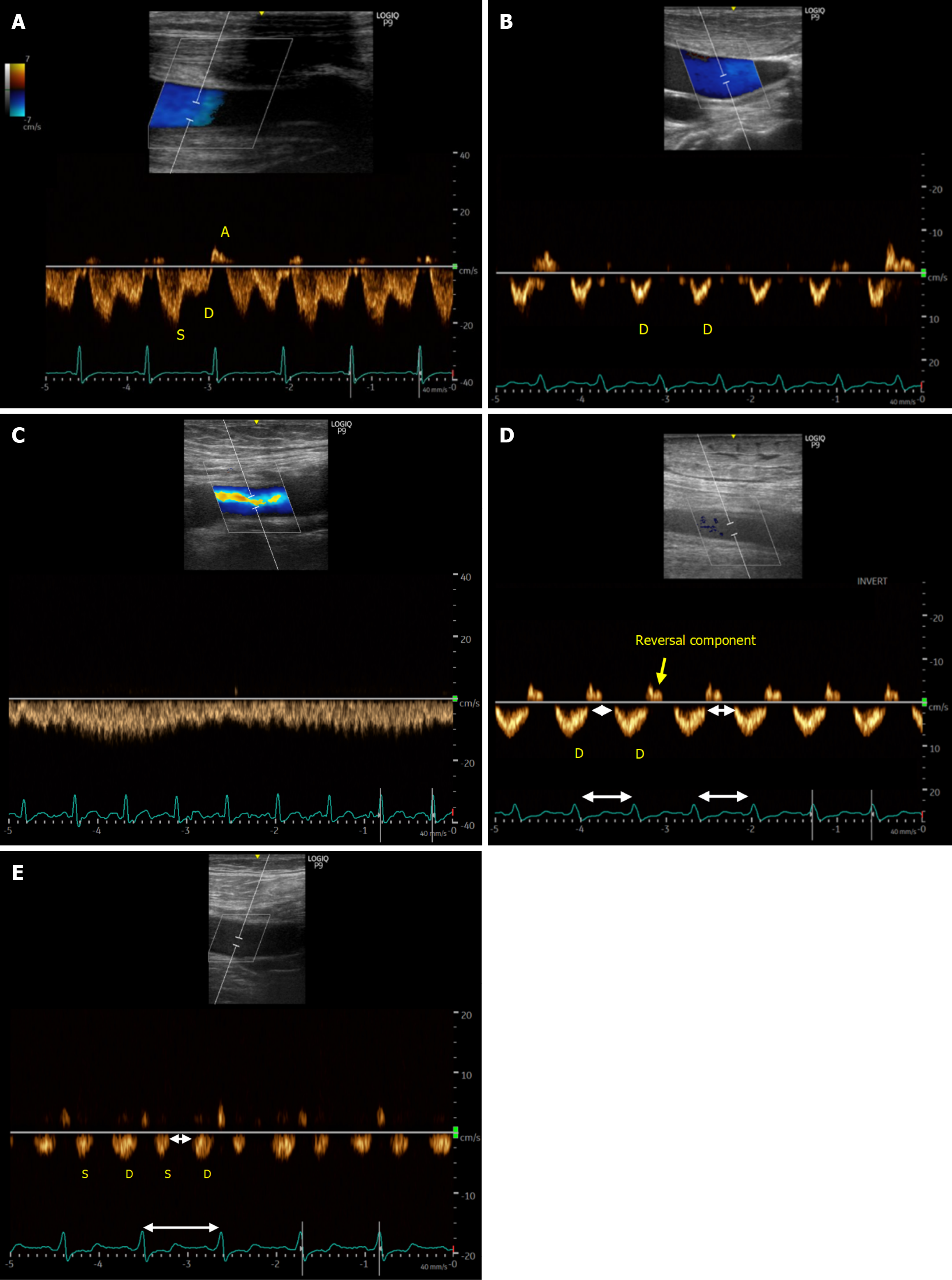

Figure 3 Internal jugular and femoral vein Doppler patterns across congestion states. A and B: Doppler waveforms of the internal jugular vein showing a normal pattern (A) and a severely abnormal pattern (B). In the normal waveform, the systolic wave is greater than the diastolic (D) wave. In the abnormal pattern, the systolic wave disappears, leaving only a prominent D-wave below the baseline, indicating flow toward the heart in diastole; C and D: Normal femoral vein Doppler waveform (C) compared with a waveform showing elevated stasis index (D), characterized by prolonged flow gaps during the cardiac cycle, indicated by white double-headed arrows. The femoral vein stasis index is calculated as the percentage of this no-flow interval relative to the duration of the cardiac cycle. In this example, only a diastolic wave is seen below the baseline, with absent systolic flow; E: Another example of an elevated femoral vein stasis index, but with both systolic and D-waves below the baseline. Presumably a less severe pattern than D.

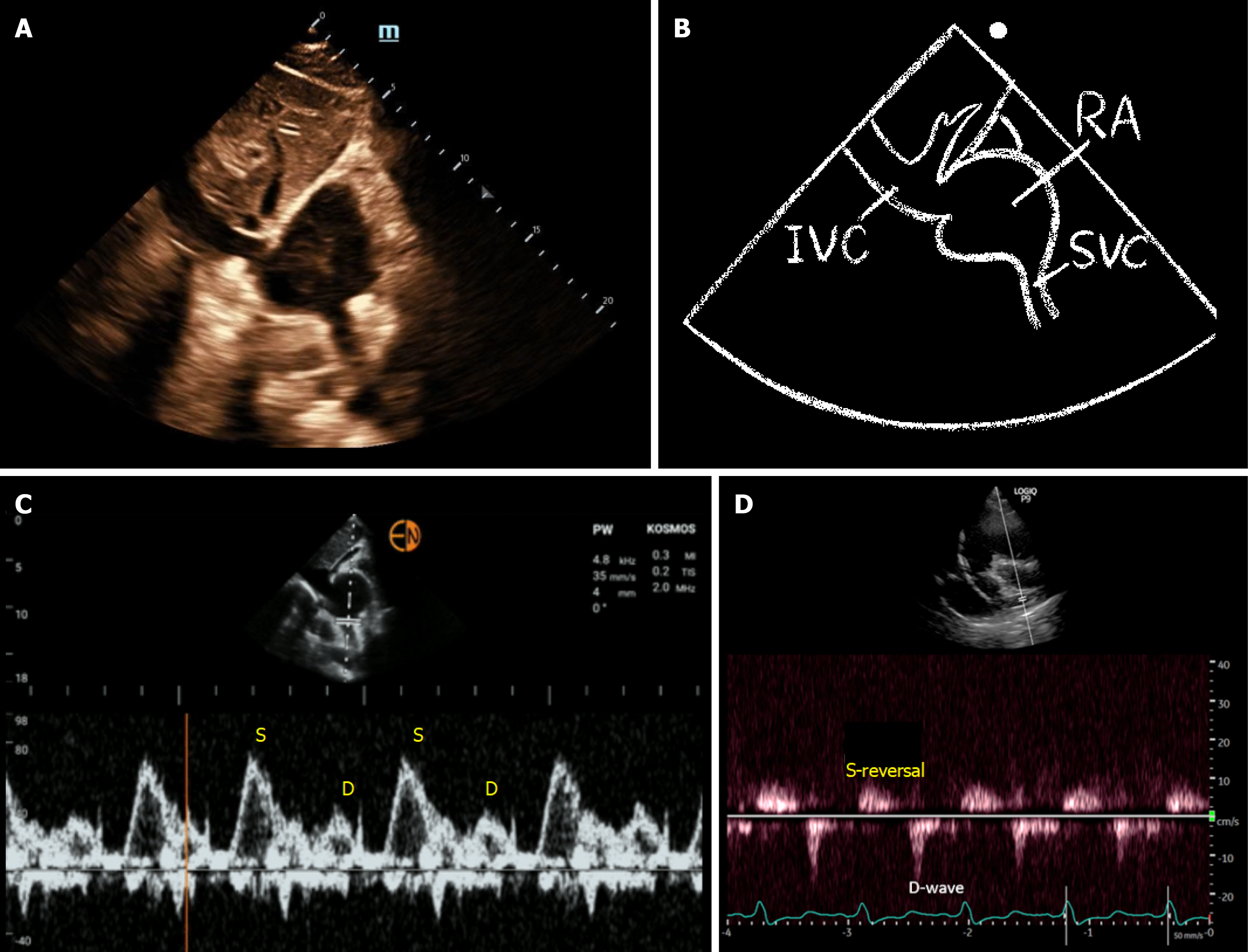

Figure 4 Superior vena cava Doppler. A and B: Subcostal bicaval view with corresponding illustration; C and D: Panel C shows a normal superior vena cava Doppler waveform obtained from the bicaval view with a systolic wave greater than the diastolic wave. Panel D demonstrates a severely abnormal pattern with systolic wave reversal. The tracing in panel D was obtained from a modified parasternal view, which often results in suboptimal Doppler angle and consequently lower recorded flow velocities. IVC: Inferior vena cava; RA: Right atrium; SVC: Superior vena cava; S: Systolic; D: Diastolic.

Figure 5 Splenic vein Doppler. A and B: Panel A shows the anatomy of the splenic vein, historically labeled as the lineal vein, and its connection to the portal vein. Panel B displays a normal Doppler waveform of the splenic vein; C and D: Severely abnormal portal (C) and splenic vein (D) waveforms resembling mirror images, obtained from a patient with cardiorenal syndrome. Anatomy image A modified from Gray’s Anatomy (public domain image). Available from: https://en.wikipedia.org/wiki/Splenic_vein.
